Level Control System Control Module -J197-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the side luggage compartment trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANELS, REMOVING AND INSTALLING .

-- Release the connectors -1- and disconnect from the Level Control System Control Module -J197- -2-.

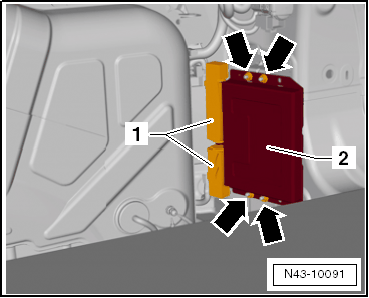

Fig 1: Removing Level Control System Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unscrew the nuts -arrows- and remove the Level Control System Control Module -J197- -2-.
