Plenum Chamber: Removal

WARNING: This page is about a different car, the 2017 Ford Expedition and 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the heater core and evaporator core housing. Refer to Heater Core And Evaporator Core Housing .

2.

Disconnect the mode door actuator electrical connector and detach the wire harness retainers.

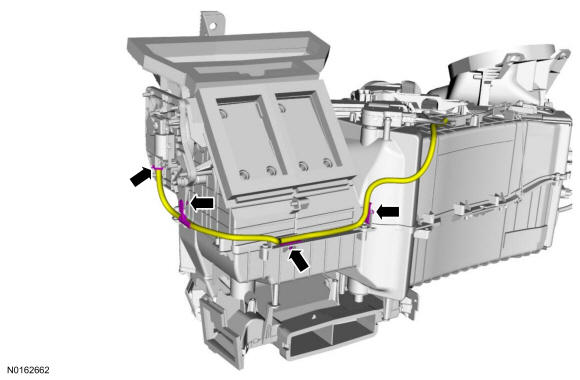

GFD136748

Courtesy of FORD MOTOR COMPANY

3.

Remove the plenum chamber screws.

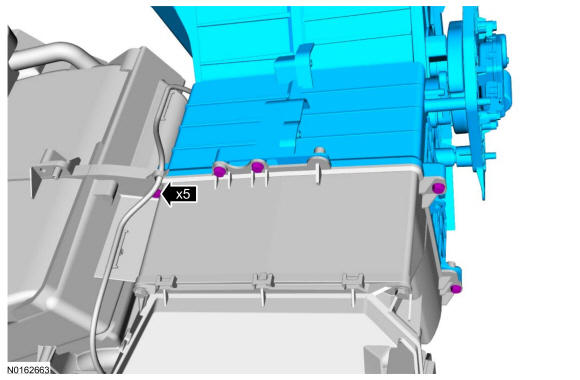

GFD136749

Courtesy of FORD MOTOR COMPANY

4.

Remove the plenum chamber screws and remove the plenum chamber.

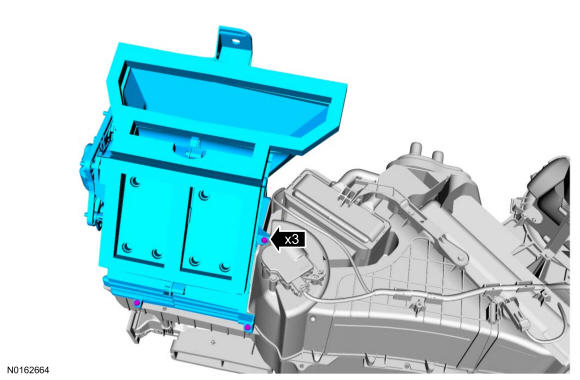

GFD136750

Courtesy of FORD MOTOR COMPANY
