Securing On Engine And Transmission Holder

Special tools and workshop equipment required

Holding Plate :VW309
Engine And Transmission Holder:VAS6095

Procedure

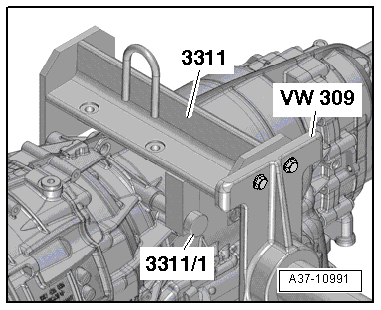

Fig 1: Identifying Support Tool 3311, Bolt 3311/1 And Holding Plate VW 309

Courtesy of AUDI OF AMERICA, LLC

Hold the transmission with the Shop Crane:VAS6100 . Refer to TRANSMISSION, TRANSPORTING .

-- Attach the Holding Plate:VW309A to the Hook And Support Tool:3311 .

-- Place the transmission using the Shop Crane:VAS6100 in the Engine And Transmission Holder:VAS6095 .

NOTE:

The vents for the transmission housing and final drive must be closed before turning a filled transmission with ATF pan upward on the engine/transmission holder.
