Overview - Parking Lock Emergency Release

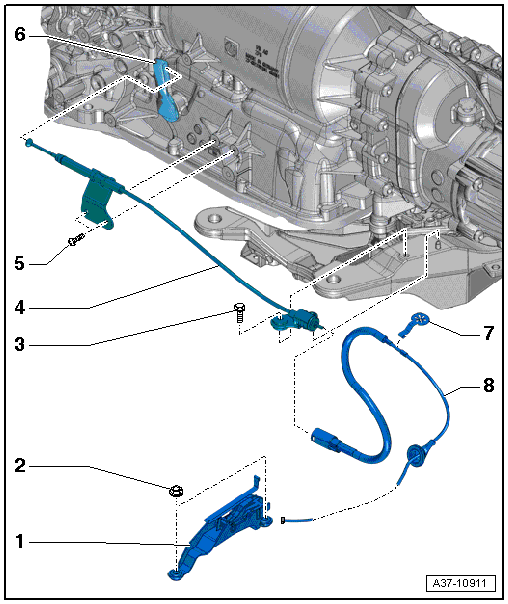

Fig 1: Identifying Parking Lock Emergency Release Overview

Courtesy of AUDI OF AMERICA, LLC

1. Emergency Release Lever
   • For the parking lock
2. Nut
   • 2.5 Nm
   • Quantity: 2
3. Bolt
   • 9 Nm
4. Front Emergency Release Cable
   • For the parking lock
   • Do not bend
   • Removing and installing. Refer to FRONT EMERGENCY RELEASE CABLE, PARKING LOCK, REMOVING AND INSTALLING .
5. Bolt
   • 9 Nm
   • Quantity: 2
6. Selector Lever
   • For the parking lock emergency release.
7. Clip
   • Always replace
   • For selector lever cable
8. Rear Emergency Release Cable
   • For the parking lock
   • Do not bend
   • Removing and installing. Refer to REAR EMERGENCY RELEASE CABLE, PARKING LOCK, REMOVING AND INSTALLING .
