Special Tools

Fig 1: Identifying Special Tools And Workshop Equipment

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

Engine Support Bridge:10-222A for AWD vehicles
Engine and Gearbox Jack:VAS6931
Engine Bung Set:VAS6122
Tensioning Strap:T10038 for AWD vehicles
Crankshaft Socket:T40058
Engine Support - Basic Set:T40091 for AWD vehicles

Fig 2: Identifying Special Tools And Workshop Equipment

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

Engine and Gearbox Jack:VAS6931
Engine Bung Set:VAS6122
Tensioning Strap:T10038
Crankshaft Socket:T40058
Gearbox Support:T40173

Fig 3: Identifying Special Tools

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

Engine Support Bridge:10-222A
Engine/Gearbox Support Shackle (2 pc.):10-222A/12
Engine Sling - Engine Bracket :2024 A /1
Engine and Gearbox Jack:VAS6931
Engine Support - Basic Set:T40091
Engine Support - Supplement Kit:T40093A with Engine Support Brackets:T40093/7 , Engine Support Brackets:T40093/8

Fig 4: Identifying Special Tools And Workshop Equipment

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

Engine and Gearbox Jack:VAS6931
Engine Bung Set:VAS6122
Tensioning Strap:T10038
Gearbox Support:T40173
Wrench - 21mm:T40263
Crankshaft Turning Tool:T40272

Special tools and workshop equipment required

Used Oil Collection and Extraction Unit:SMN372500

Fig 5: Identifying Used Oil Collection And Extraction Device VAS 6622
Courtesy of AUDI OF AMERICA, LLC
Tensioning Strap:T10038

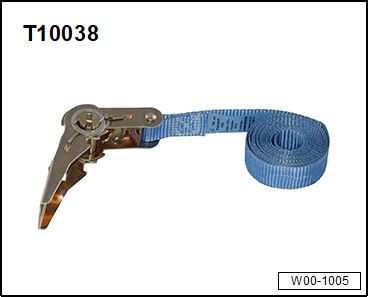

Fig 6: Identifying Special Tools -- Tensioning Belt T10038
Courtesy of AUDI OF AMERICA, LLC
Engine/Gearbox Jack Adapter - Support Plate:T10062 for FWD vehicles

Fig 7: Support T10062
Courtesy of AUDI OF AMERICA, LLC
Bits for VAG1331/13:T10099

Fig 8: Bits T10099
Courtesy of AUDI OF AMERICA, LLC
Counterhold - Multiple Use:T10172A with Counterhold - Kit - Adapter 2:T10172/2

Fig 9: Counter-Holder Tool T10172
Courtesy of AUDI OF AMERICA, LLC
Engine/Gearbox Jack - Gearbox Support:T10337 for AWD vehicles

Fig 10: Engine/Gearbox Jack - Gearbox Support T10337
Courtesy of AUDI OF AMERICA, LLC
Crankshaft Socket:T40058

Fig 11: Adapter (Socket) T140058
Courtesy of AUDI OF AMERICA, LLC
Clutch Module Transportation Lock:T40170

Fig 12: Clutch Module Transportation Lock T40170
Courtesy of AUDI OF AMERICA, LLC
Crankshaft Turning Tool:T40257

Fig 13: Crankshaft Turning Tool T40257
Courtesy of AUDI OF AMERICA, LLC
Wrench - 21mm:T40263

Fig 14: Identifying Wrench 21 mm T40263
Courtesy of AUDI OF AMERICA, LLC
Adapter:T40314

Fig 15: Adapter T40314
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 1331 5-50Nm:VAG1331

Fig 16: Identifying Torque Wrench
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 1331 Insert - Ring Wrench - 10mm:VAG1331/13
Torque Wrench 1332 Insert - Ring Wrench - 16mm:VAG1332/14

Fig 17: Identifying Ring Spanner Insert AF 16 VAG 1332/14
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 1410:VAG1410

Fig 18: Identifying Torque Wrench VAG 1410
Courtesy of AUDI OF AMERICA, LLC
Torque Screwdriver:VAG1624

Fig 19: Identifying Torque Screwdriver VAG 1624 (Or Locally Available Equivalent)
Courtesy of AUDI OF AMERICA, LLC
Engine And Transmission Holder:VAS6095

Fig 20: Engine And Transmission Holder VAS 6095
Courtesy of AUDI OF AMERICA, LLC
Shop Crane:VAS6100

Fig 21: Identifying Shop Crane VAS 6100
Courtesy of AUDI OF AMERICA, LLC
Oil Filler:VAS6262A

Fig 22: Adapter For Oil Filling VAS 6262 A
Courtesy of AUDI OF AMERICA, LLC
Oil Filler - Jointed Hose:VAS6262/5
If necessary, Oil Filler - Adapter 6:VAS6262/6

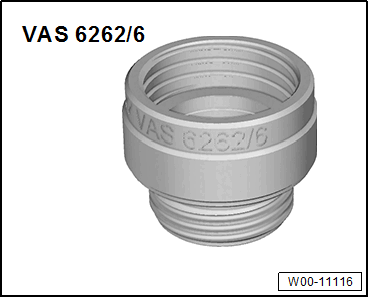

Fig 23: Adapter For Oil Filling 6 VAS 6262/6
Courtesy of AUDI OF AMERICA, LLC
ESD Work Surface:VAS6613

Fig 24: Identifying Electro-Static Discharge Work Surface VAS 6613
Courtesy of AUDI OF AMERICA, LLC
Holding Plate :VW309

Fig 25: Holding Plate VW 309
Courtesy of AUDI OF AMERICA, LLC
Hose Clamps - Up To 25 mm:3094

Fig 26: 3094 Hose Clamps
Courtesy of AUDI OF AMERICA, LLC
Hook And Support Tool:3311 with Hook And Support Tool - Bolt:3311/1

Fig 27: Hook And Support Tool 3311 With Bolt 3311/1
Courtesy of AUDI OF AMERICA, LLC
Inner TORX®, size T6
Commercially available torque wrench with 0.25 Nm torque, for example, made by Stahlwille, No. 775/12, range 0.2 - 1.2 Nm
