Wiring Diagram [CDRA]
›
Wiring Diagrams
›

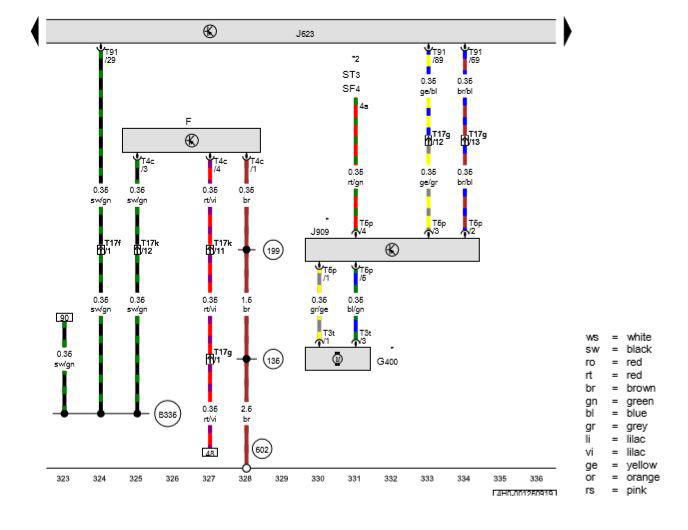

Brake Lamp Switch, Engine Control Module, Fuel Tank Leak Detection Control Module
›
Notes
Brake Lamp Switch, Engine Control Module, Fuel Tank Leak Detection Control Module: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
