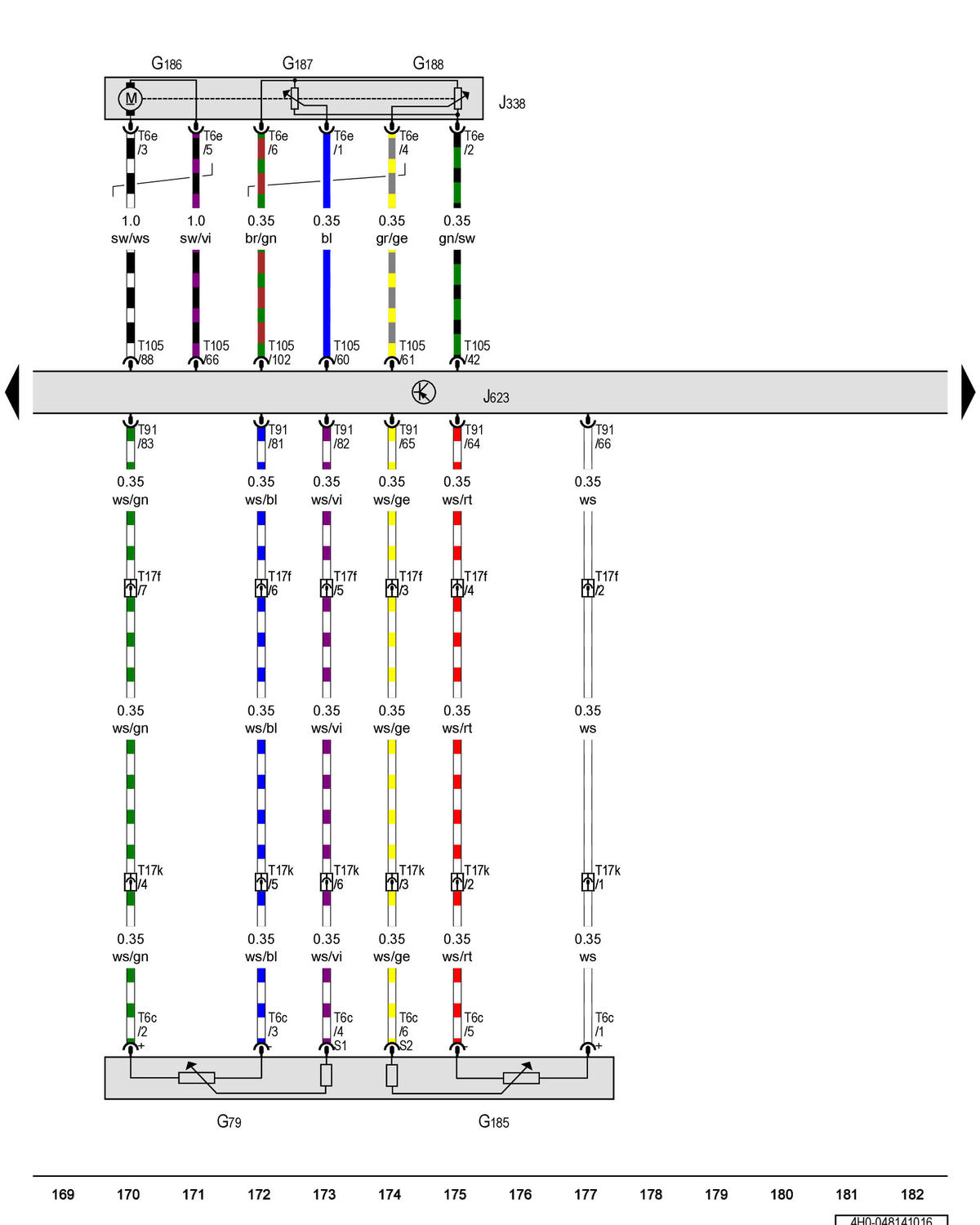

Accelerator Pedal Position Sensor, Throttle Valve Control Module, Engine Control Module: Notes

GWW4H0-048141016Courtesy of AUDI OF AMERICA, LLC
