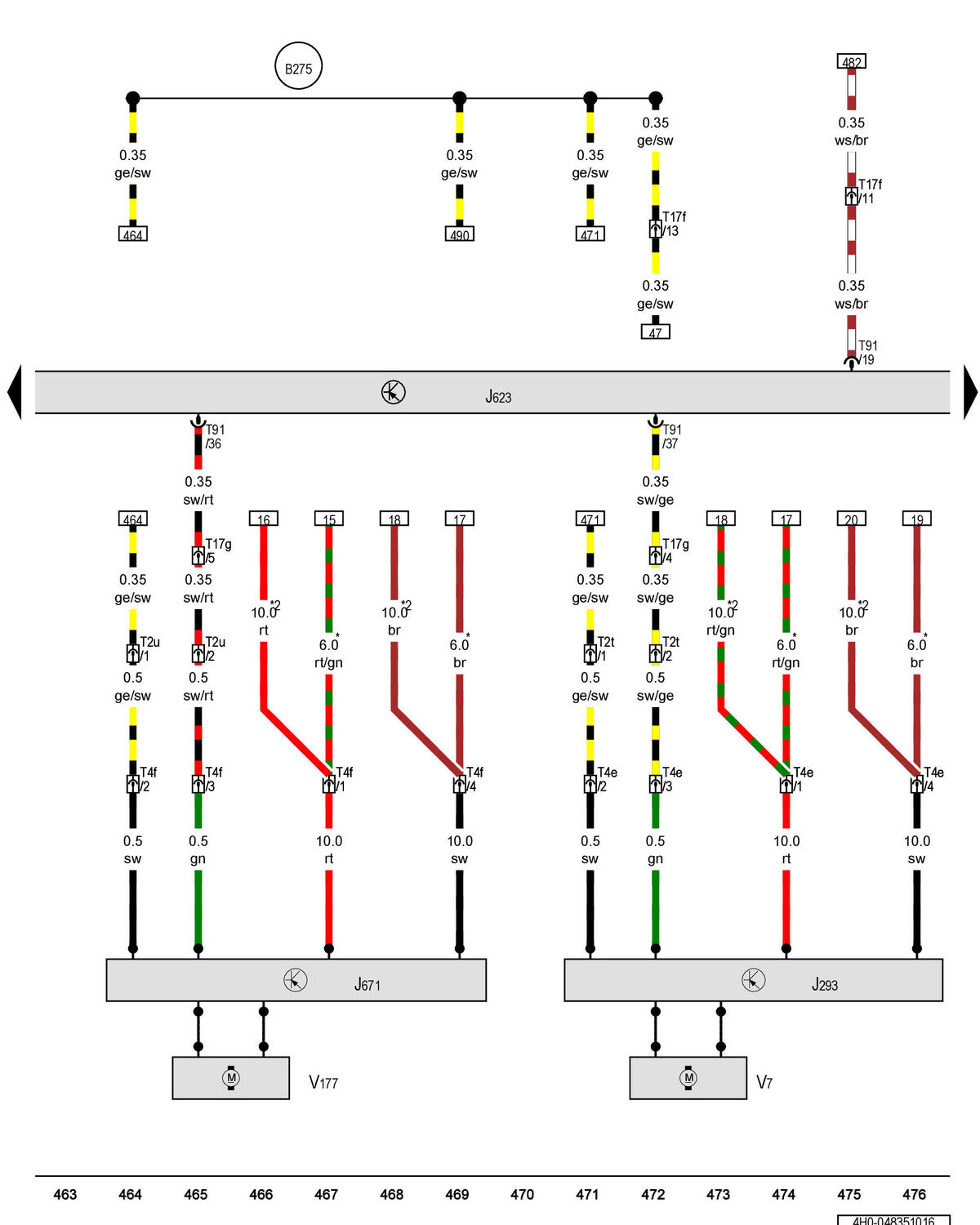

Radiator Fan Control Module, Engine Control Module, Radiator Fan Control Module 2: Notes

GWW4H0-048351016Courtesy of AUDI OF AMERICA, LLC
