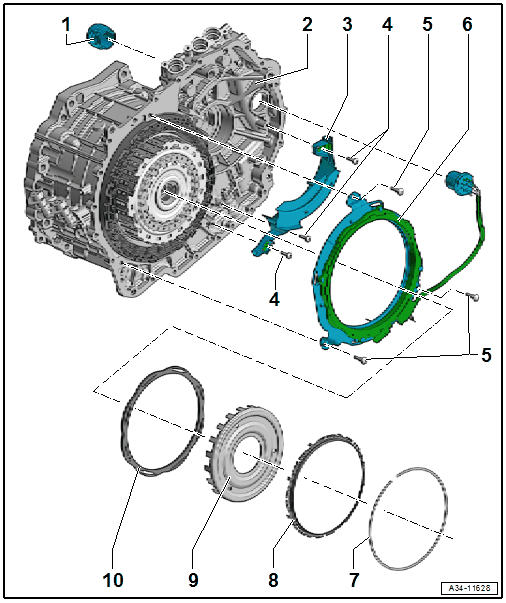

Overview - Hybrid Module
- Connector Housing
- Hybrid Module
- Removing. Refer to HYBRID MODULE, REMOVING .
- Replacing. Refer to HYBRID MODULE - REPLACING .
- Installing. Refer to HYBRID MODULE, INSTALLING .
- Cable Guide
- Bolt
- 8 Nm + 90°
- Always replace
- Bolt
- 8 Nm + 90°
- Always replace
- Drive Motor Rotor Position Sensor 1 -G713- with Drive Motor Temperature Sensor -G712-
- Removing and Installing. Refer to ROTOR POSITION SENSOR AND TEMPERATURE SENSOR, REMOVING AND INSTALLING .
- Circlip
- Always replace
- Support Ring
- Always replace
- Pressure Plate K1
- Rotor
