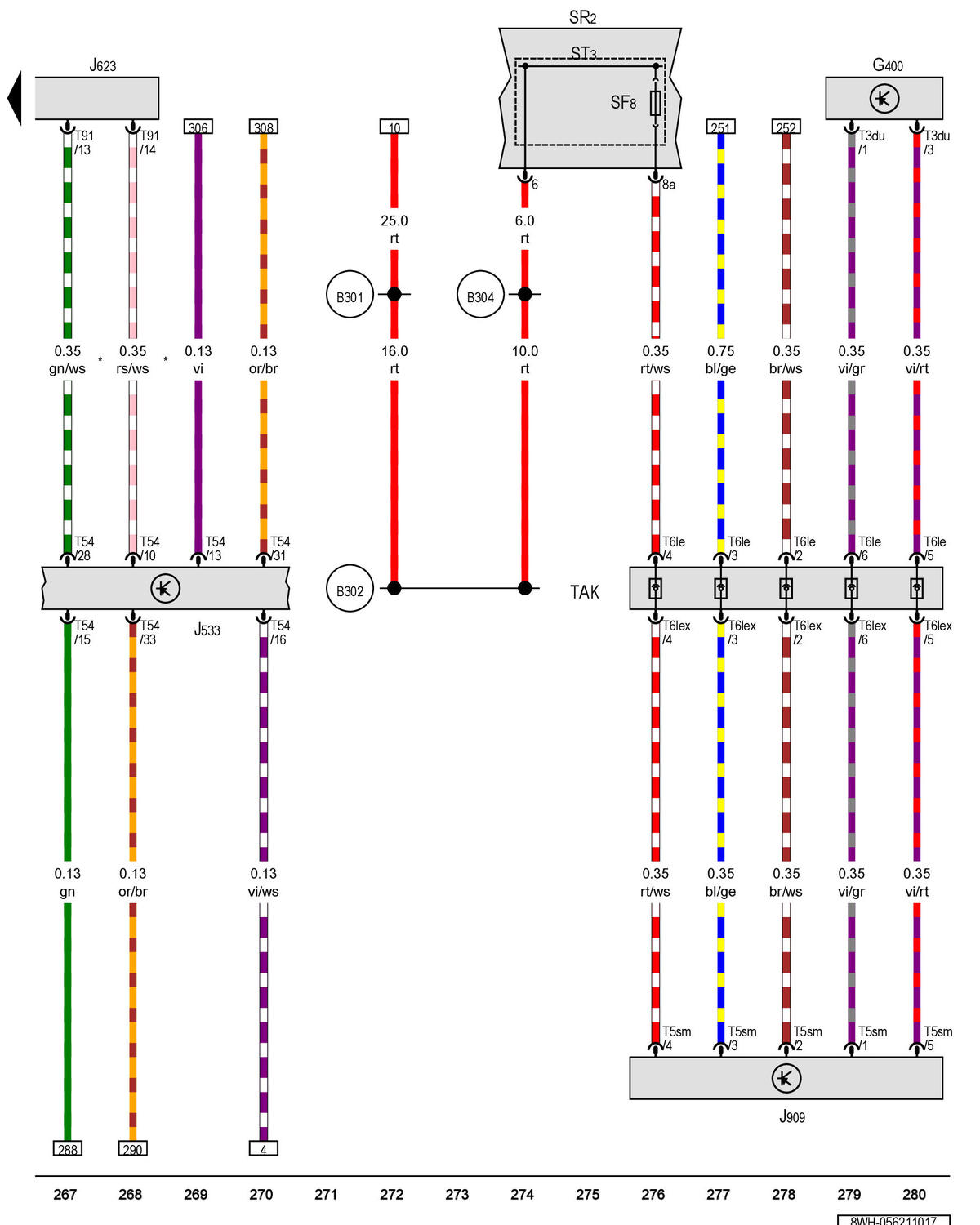

Fuel Tank Pressure Sensor, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module, Relay And Fuse Panel 2: Notes

GWW8WH-056211017Courtesy of AUDI OF AMERICA, LLC
