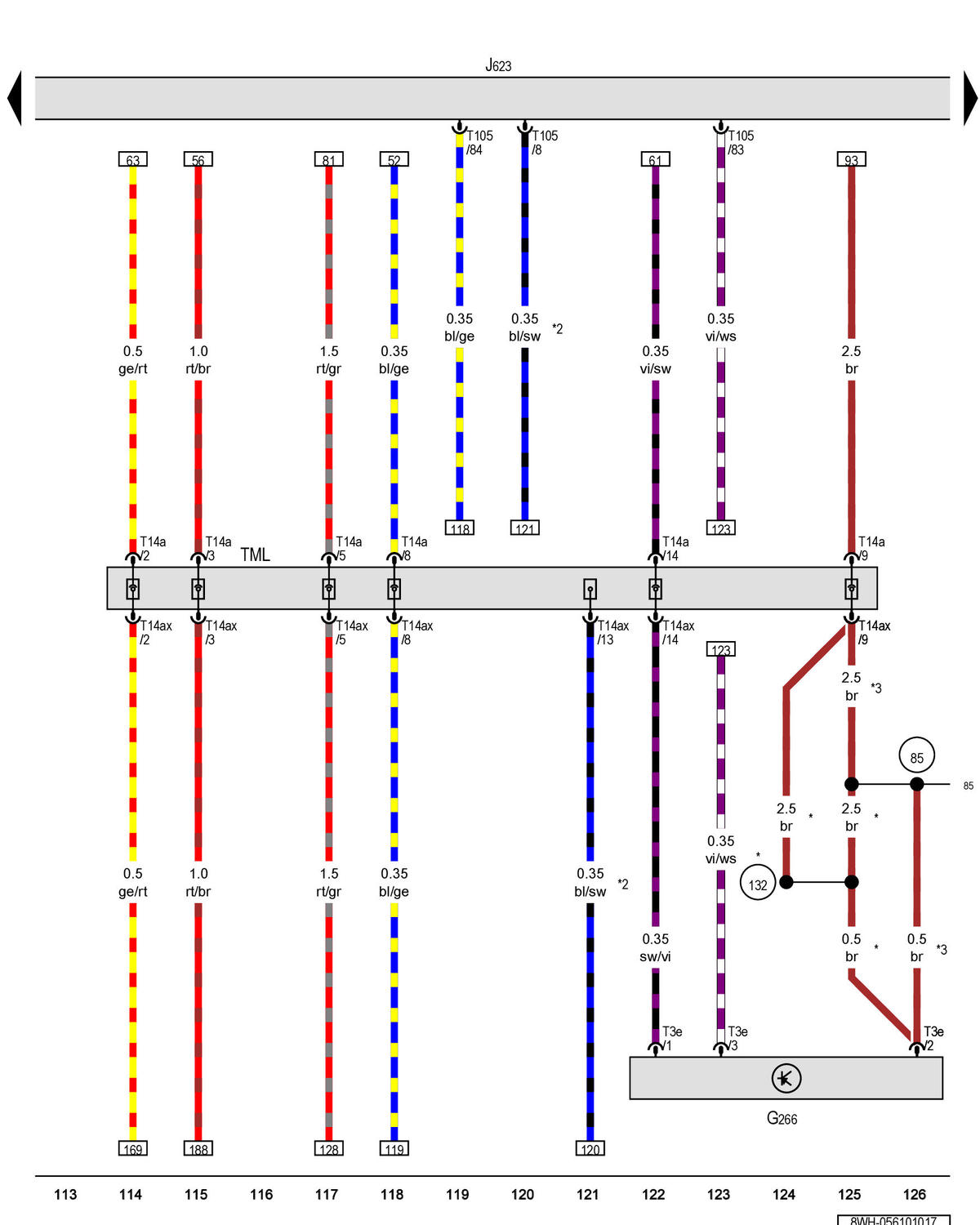

Oil Level Thermal Sensor, Engine/Motor Control Module: Notes

GWW8WH-056101017Courtesy of AUDI OF AMERICA, LLC
