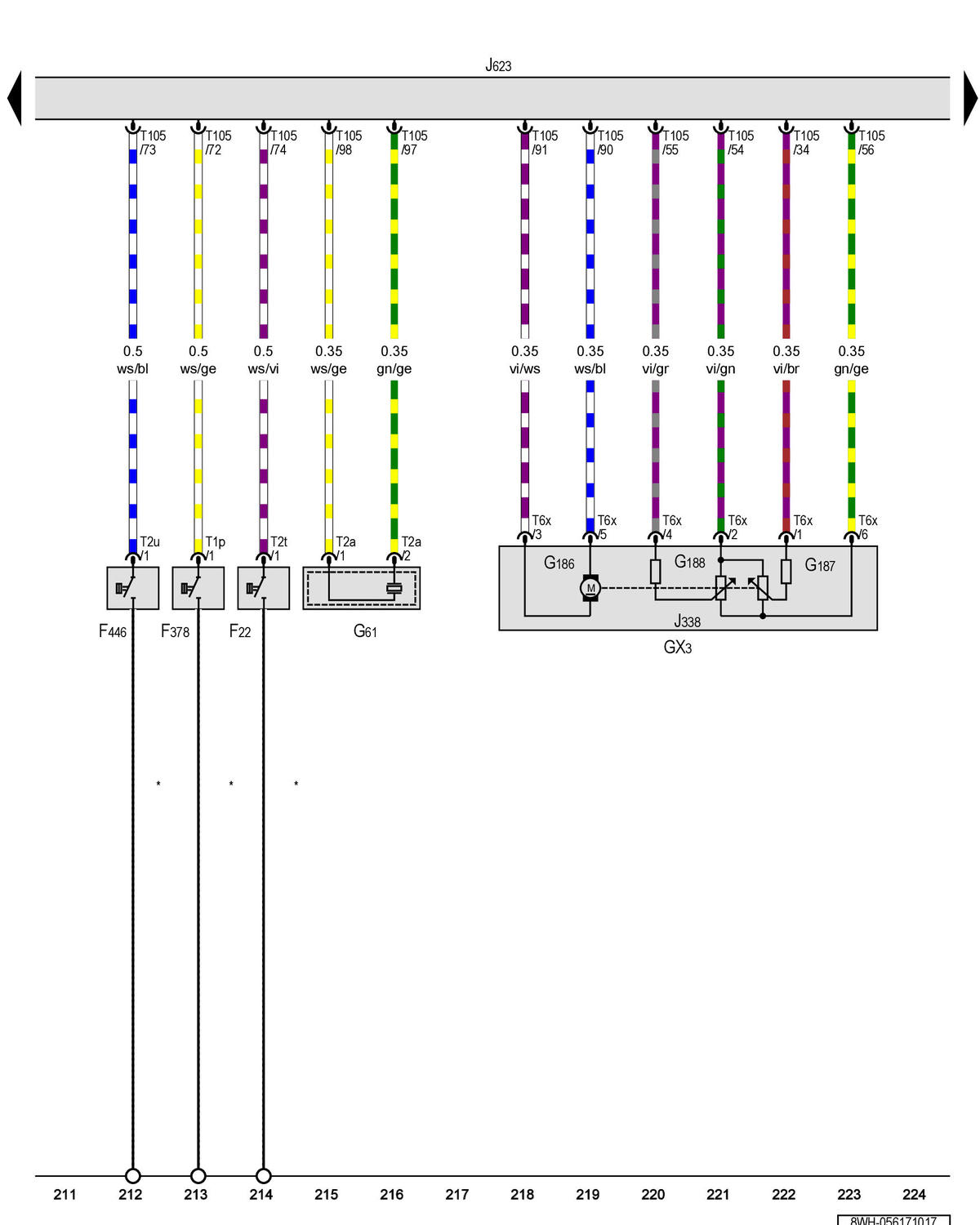

Oil Pressure Switch, Reduced Oil Pressure Switch, Oil Pressure Switch, Level 2, Throttle Valve Control Module, Knock Sensor 1, Engine/Motor Control Module: Notes

GWW8WH-056171017Courtesy of AUDI OF AMERICA, LLC
