Engine Mount

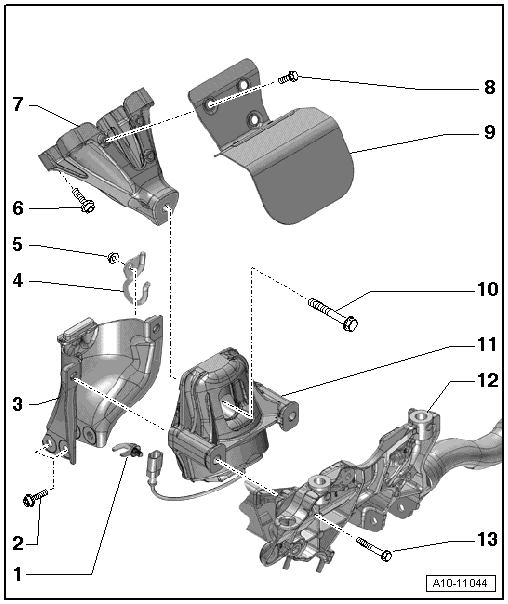

Fig 1: Engine Mount Exploded View
GWWA10-11044Courtesy of AUDI OF AMERICA, LLC
  1. Not Installed
  2. Bolt
    • 20 Nm
  3. Retaining Plate
    • For the engine mount
    • If the engine mount is faulty, replace the retaining plate
    • Check the retaining plate on the opposite side; replace if necessary
  4. Not Installed
  5. Not Installed
  6. Bolt
    • 40 Nm
  7. Engine Support
  8. Bolt
    • 10 Nm
  9. Heat Shield
  10. Bolt
    • 90 Nm +90°
    • Always replace after removing
  11. Engine Mount
    • Depending on the transmission with the Left Electrohydraulic Engine Mount Solenoid Valve -N144-, Right Electrohydraulic Engine Mount Solenoid Valve -N145-
    • Removing and installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
  12. Subframe
  13. Bolt
    • 55 Nm
