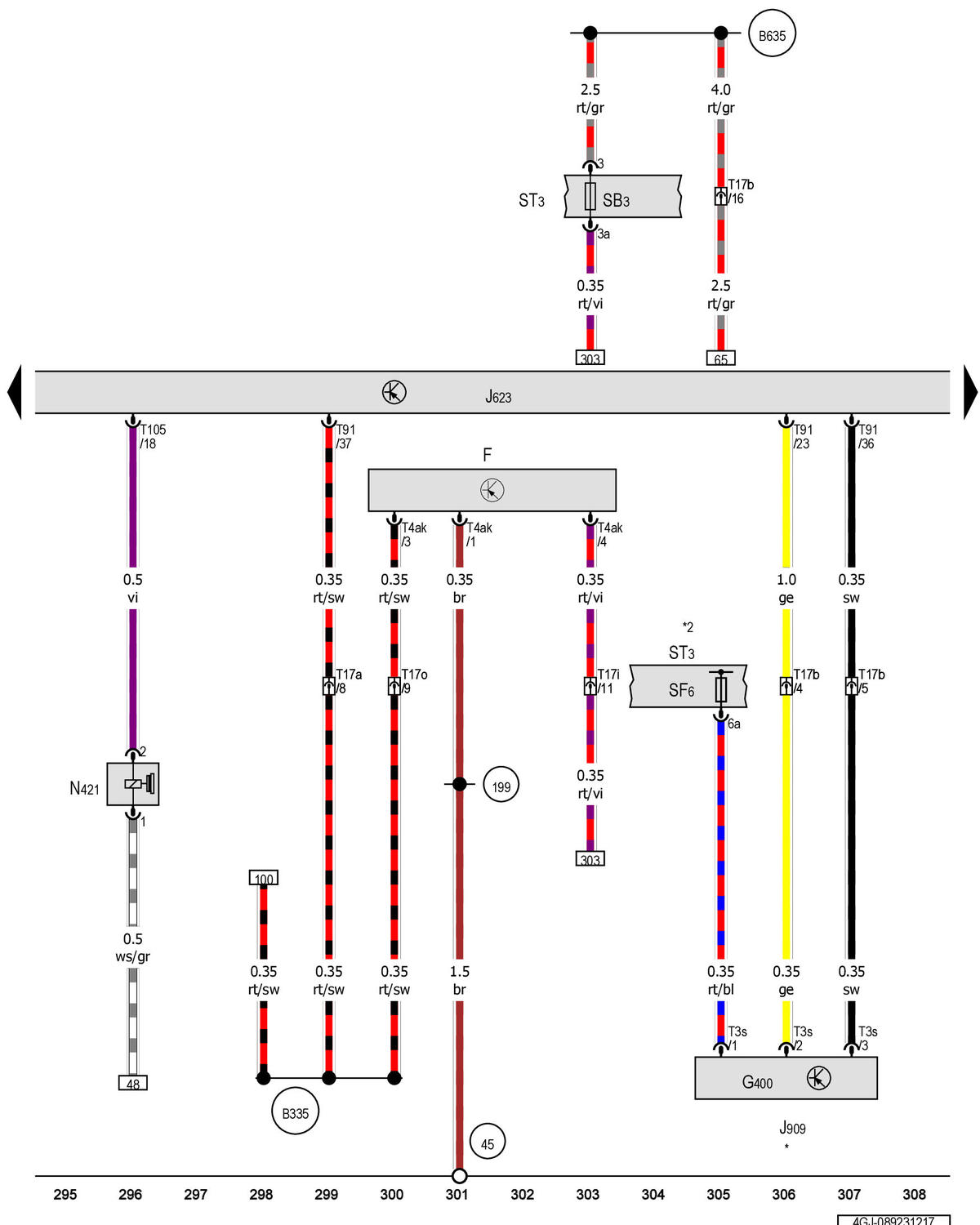

Brake Lamp Switch, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module: Notes

GWW4GJ-089231217Courtesy of AUDI OF AMERICA, LLC
