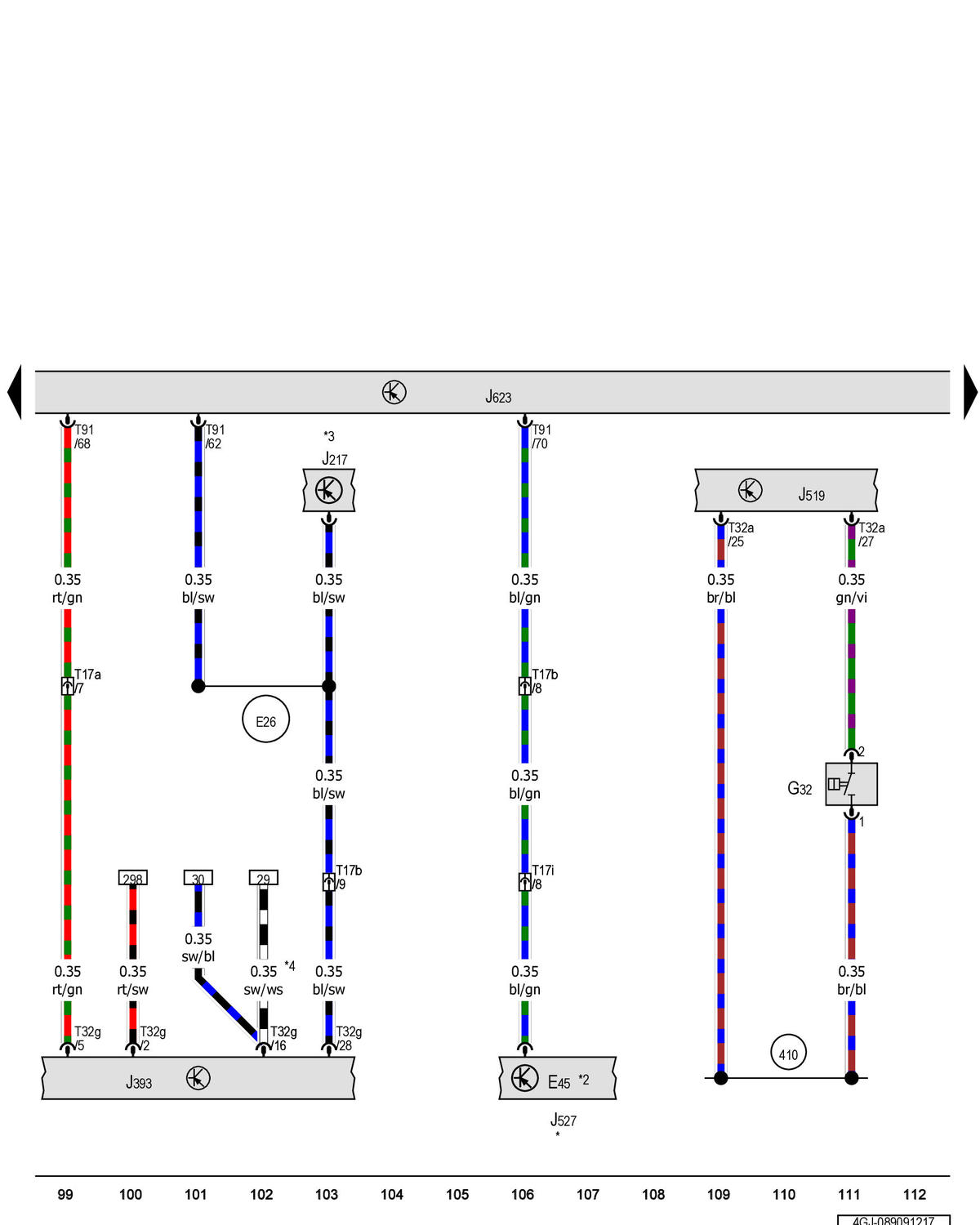

Wiring Diagram (Engine(S): CREC, CREH)
›
Wiring Diagram
›
Engine Coolant Level Sensor, Vehicle Electrical System Control Module, Engine/Motor Control Module
›
Notes
Engine Coolant Level Sensor, Vehicle Electrical System Control Module, Engine/Motor Control Module: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
