Overview - Navigation System, MMI Navigation Plus, 7T6

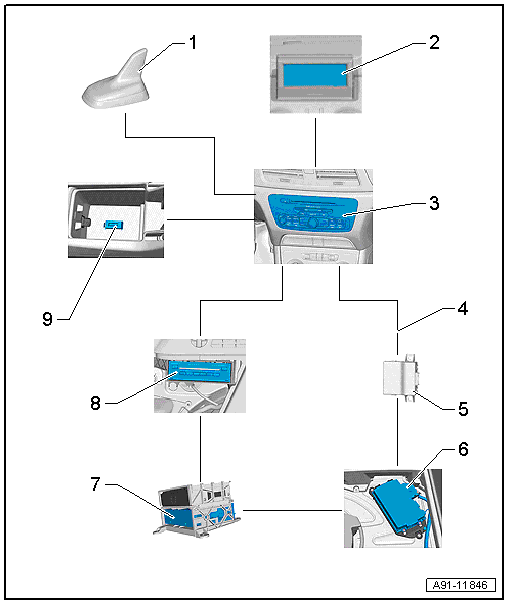

Fig 1: Components Location - Navigation System, MMI Navigation Plus (7T6)

Courtesy of AUDI OF AMERICA, LLC

1. Roof Antenna -R216-
2. Front Information Display Control Head -J685-
   • In center of the instrument panel
3. Information Electronics Control Module 1 -J794-
   • Inside the instrument panel
4. MOST Bus
5. Data Bus On Board Diagnostic Interface -J533-
   • Behind the driver side left compartment
6. Digital Sound System Control Module -J525-
   • In the right rear of the luggage compartment under the luggage compartment.
7. Radio -R-
   • In the luggage compartment at the left behind the door
8. CD Changer -R41-
   • In the luggage compartment at the left behind the door
9. External Audio Source Connection -R199-
   • In the Center Console Storage Compartment
