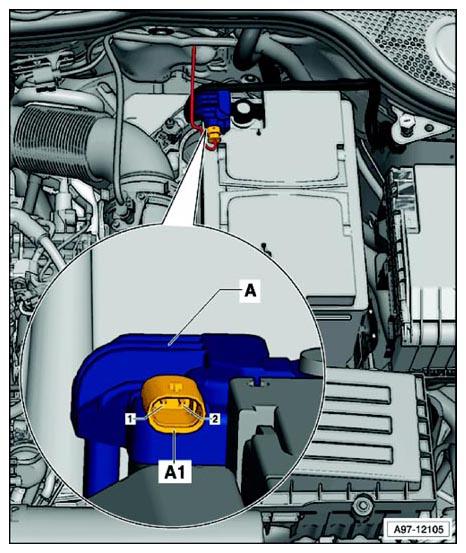

Battery Monitoring Control Module Connector End View (J367, T2)
Courtesy of AUDI OF AMERICA, LLC
| A |
Battery Monitoring Control Module -J367- |
| A1 |
Double Connector -T2- black |

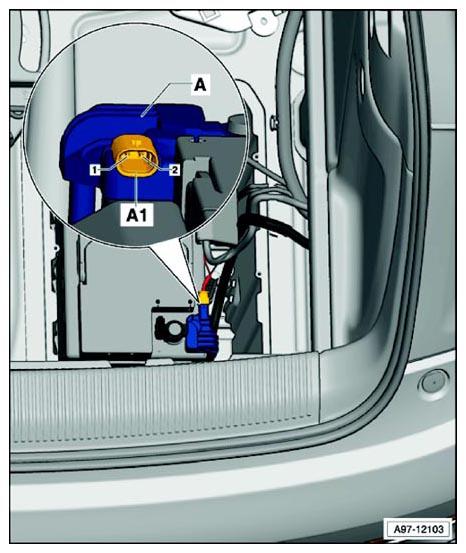

On groundwire battery terminal clamp.
Courtesy of AUDI OF AMERICA, LLC
| A |
Battery Monitoring Control Module -J367- |
| A1 |
Double Connector -T2-, black |
