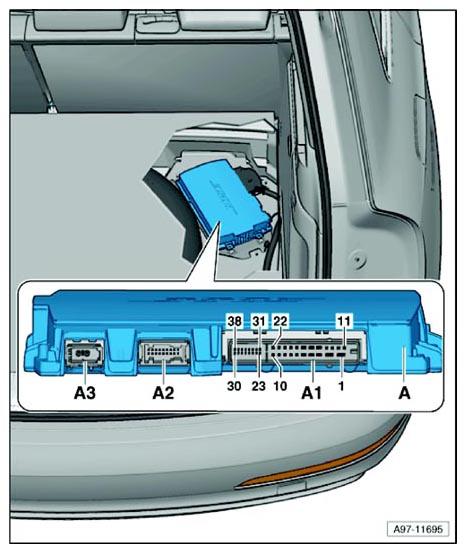

Digital Sound System Control Module Connector End View (J525, T38, T2dk)
Under luggage compartment floor, rear right.
Courtesy of AUDI OF AMERICA, LLC
| A |
Digital Sound System Control Module -J525- |
| A1 |
38-Pin Connector -T38-, black |
| A2 |
Not used |
| A3 |
Double Connector -T2dk-, black |
