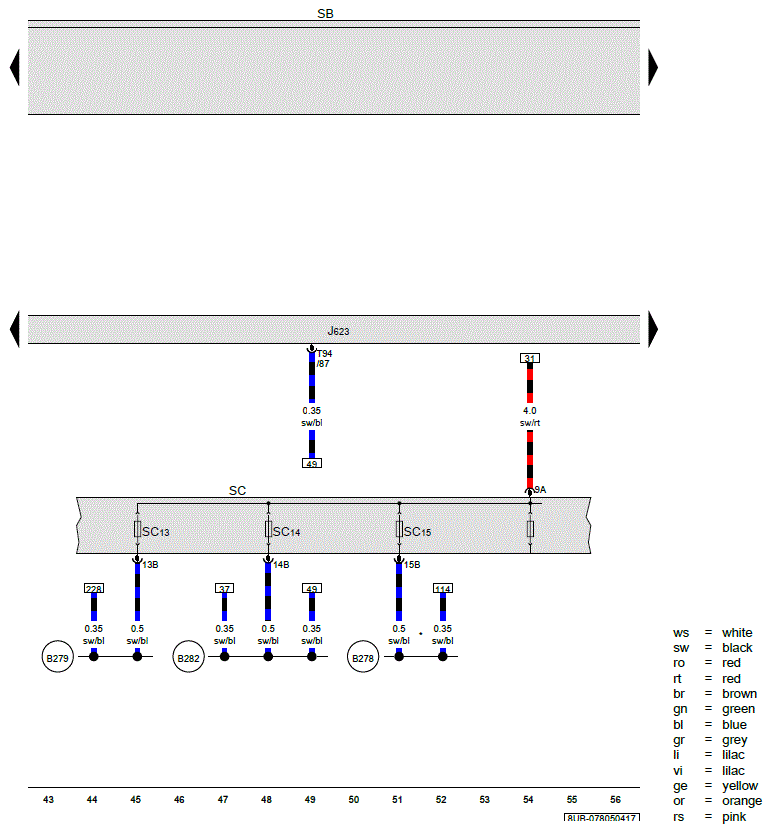

Engine Control Module

J623  Engine control module

SB  Fuse panel B

SC  Fuse panel C

SC13  Fuse 13 (on fuse panel C)

SC14  Fuse 14 (on fuse panel C)

SC15  Fuse 15 (on fuse panel C)

T94  94-pin connector, black

(B278) Positive connection 2 (15a) (in main wiring harness)

(B279) Positive connection 3 (15a) (in main wiring harness)

(B282) Positive connection 6 (15a) (in main wiring harness)

*  Diameter depends on equipment
