Overview - Front Level Control System Sensor

NOTE:

A replacement Front Left and Right Level Control System Sensor -G78/G289- only comes complete with the coupling rod and the upper and lower retaining plate.

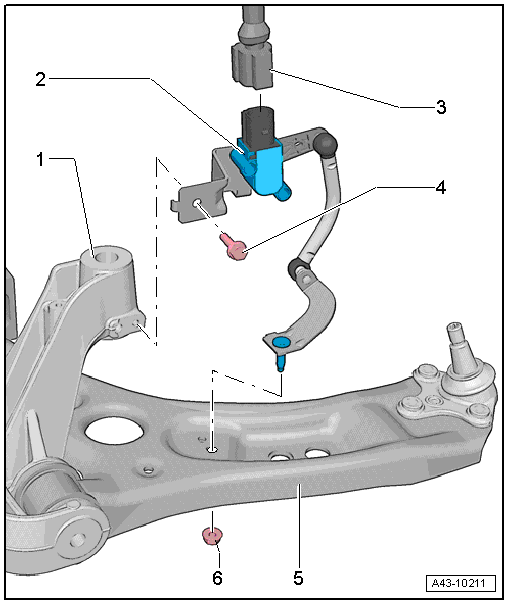

Fig 1: Front Level Control System Sensor Exploded View

Courtesy of AUDI OF AMERICA, LLC

Subframe
Left Front Level Control System Sensor -G78- and Right Front Level Control Sensor -G289-
- Complete with attachments
- The lever must face toward outside of vehicle
- Removing and Installing. Refer to LEFT/RIGHT FRONT LEVEL CONTROL SYSTEM SENSOR -G78- / .
- If the Left Front Level Control System Sensor -G78- or the Right Front Level Control Sensor -G289- is being removed and installed, then a basic setting for the electronic damping must be performed. Refer to Vehicle Diagnostic Tester.
Connector
Bolt
- 9 Nm
Control Arm
Nut
- 9 Nm
- Always replace if removed
