Overview - Rear Side Window

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

Courtesy of AUDI OF AMERICA, LLC

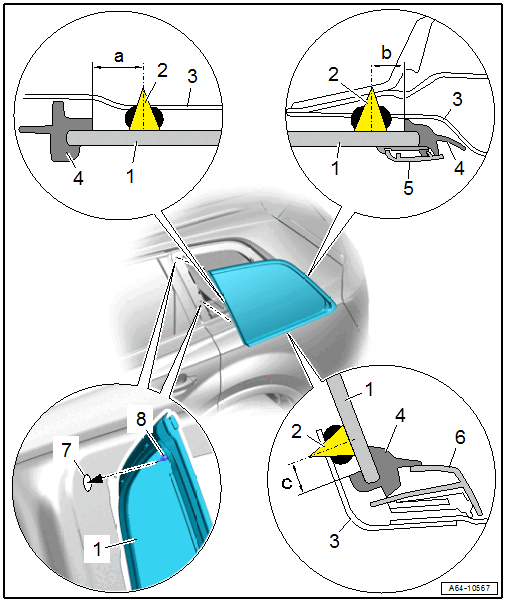

1. Rear Side Window
   • Removing and Installing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
   • After installing push in first with the retainers -item 8-
2. Adhesive Bead
   • Observe the minimum curing time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
   • Note the different distances to the window edge
     • Dimension -a- = 13 mm.
     • Dimension -b- = 8 mm
     • Dimension -c- = 13 mm
   • Adhesive bead thickness. Refer to Applying Adhesive: .
3. Side Panel Window Opening
4. Molding
   • Must not be damaged in the visible area
5. Trim Molding
6. Lower Trim Molding
7. Securing Hole
8. Retainer
   • No replacement part
   • Is cut through when removing the window.
