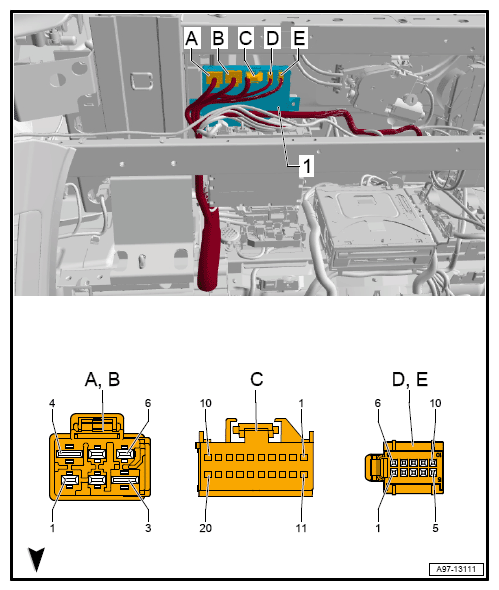

Convertible Top Control Module -J256-, Location

1. 1  - Convertible Top Control Module -J256-
2. A  - 6-Pin Connector -T6Ak-, Black
3. B  - 6-Pin Connector -T6Z-, Brown
4. C  - 20-Pin Connector -T20H-, Red
5. D  - 10-Pin Connector -T10Q-, Black
6. E  - 10-Pin Connector -T10P-, Red

Courtesy of AUDI
