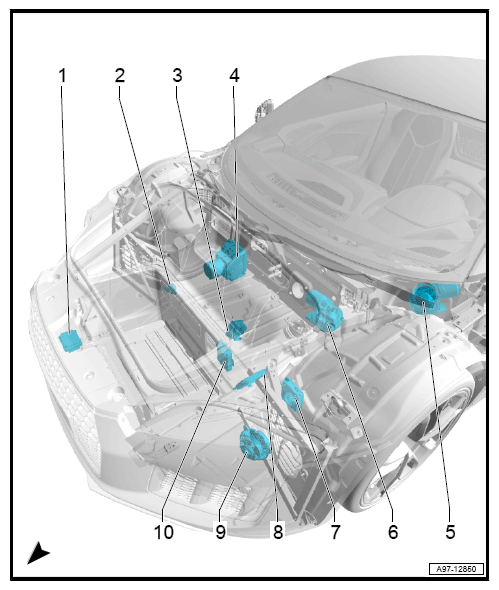

Vehicle Front Modules Overview

1. → "GARAGE DOOR OPENER CONTROL MODULE J530 "
2. → "BATTERY MONITORING CONTROL MODULE J367 "
3. → "POWER STEERING CONTROL MODULE J500 "
4. → "ABS CONTROL MODULE J104 "
5. → "WIPER MOTOR CONTROL MODULE J400 "
6. → "FRONT PASSENGER WINDSHIELD WIPER MOTOR CONTROL MODULE J584 "
7. → "RIGHT LED HEADLAMP POWER OUTPUT STAGE 2 A28/LEFT LED HEADLAMP POWER OUTPUT STAGE 2 A32 "
8. → "RIGHT LED HEADLAMP POWER OUTPUT STAGE 2 A28/LEFT LED HEADLAMP POWER OUTPUT STAGE 2 A32 "
9. → "COOLANT FAN CONTROL MODULE J293/COOLANT FAN CONTROL (FC) CONTROL MODULE 2 J671 "
10. → "ALL WHEEL DRIVE CONTROL MODULE J492 "

Courtesy of AUDI
