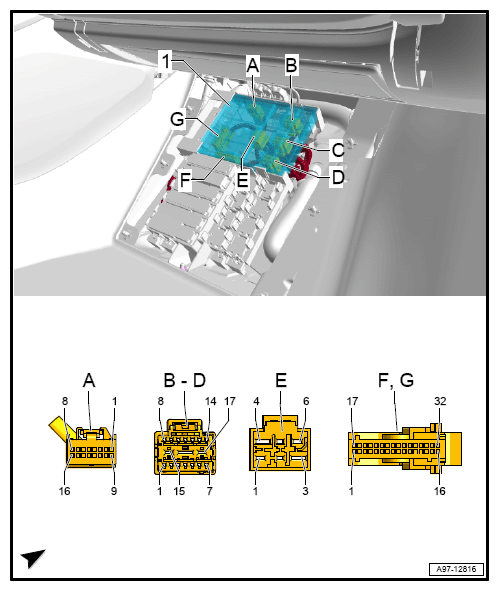

Vehicle Electrical System Control Module -J519-, Location

1. 1  - Vehicle Electrical System Control Module -J519-
2. A  - 16-Pin Connector -T16E-, Brown
3. B  - 17-Pin Connector -T17E-, Red
4. C  - 17-Pin Connector -T17F-, Green
5. D  - 17-Pin Connector -T17G-, Black
6. E  - 6-Pin Connector -T6F-, Black
7. F  - 32-Pin Connector -T32B-, Grey
8. G  - 32-Pin Connector -T32A-, Black

Courtesy of AUDI
