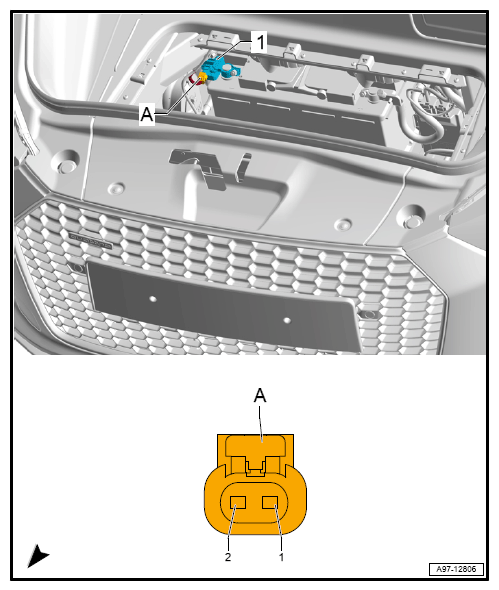

Battery Monitoring Control Module -J367-, Connector Views

DOUBLE CONNECTOR -T2BV-

Courtesy of AUDI

T2bv (A)	Designation
1	LIN-Bus, from B528 LIN-Bus Connection 1 (in main wiring harness)
2	from Connector G1 on main fuse carrier
