Vehicle Front

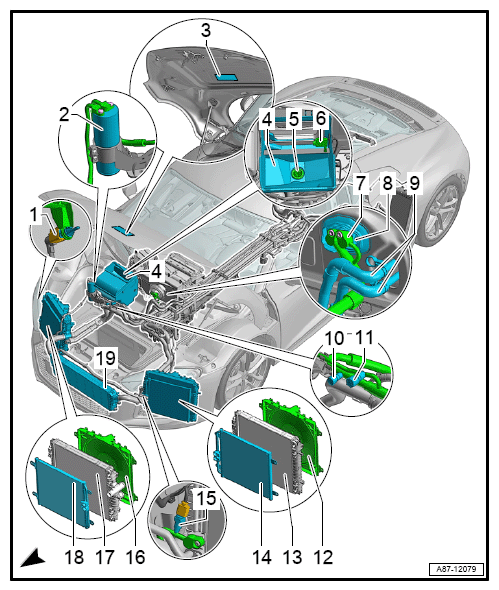

  1. 1  - Outside Air Temperature Sensor -G17-
  2. 6  - Air Quality Sensor -G238-
  3. 6  - Humidity Sensor In Fresh Air Intake Duct -G657-
  4. 12  - Radiator Fan -V7-
  5. 15  - High Pressure Sensor -G65-
  6. 16  - Radiator Fan 2 -V177-
G12778197Courtesy of AUDI
