Cooling Fans

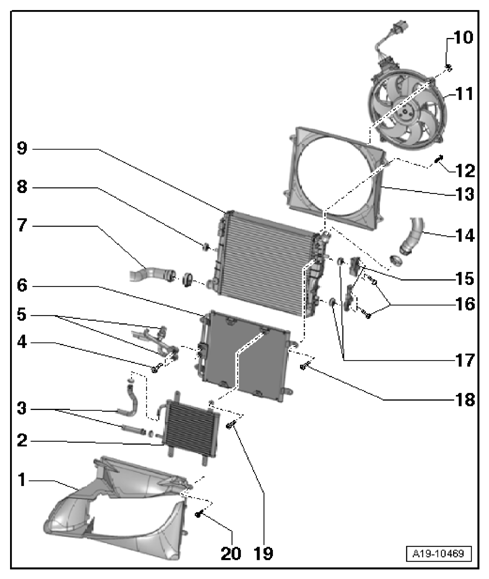

  1. 11  - Coolant Fan V7
  2. 11  - Coolant Fan Control (FC) Control Module J293
  3. 11  - Coolant Fan 2 V177
  4. 11  - Coolant Fan Control (FC) Control Module 2 J671
G12777974Courtesy of AUDI
