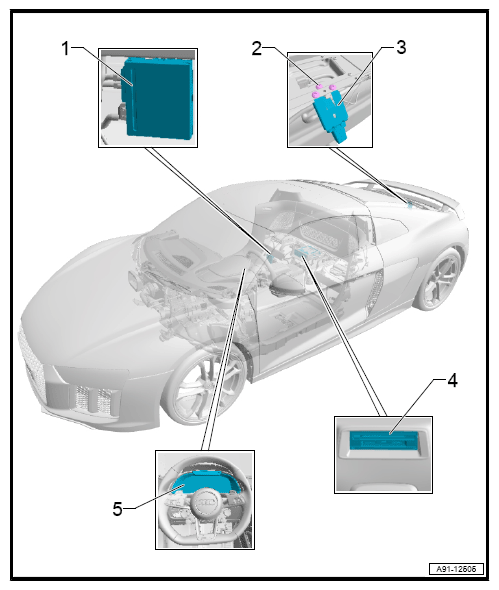

Rear Camera
- 1
- Rearview camera system control module J772
- Located Behind The Rear Shelf On The Rear Panel At The Lower Right.
- 3
- Rearview camera -R189-
- Under The Bumper Cover Center Section On The Rear Lid Rack.
- 4
- Information electronics control module 1 J794
- 5
- Instrument cluster control module J285
 Courtesy of AUDI
|
