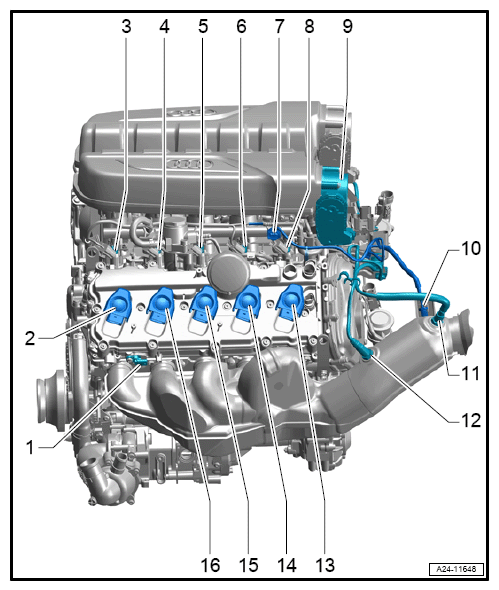

Left View
- Camshaft Position (CMP) Sensor 4 -G301-
- Ignition Coil 6 with Power Output Stage -N324-
- Cylinder 6 fuel injector 2 -N537-
- Cylinder 7 fuel injector 2 -N538-
- Cylinder 8 fuel injector 2 -N539-
- Cylinder 9 fuel injector 2 -N555-
- Low fuel pressure sensor 2 -G896-
- Cylinder 10 fuel injector 2 -N557-
- Throttle valve control module 2 -J544-
- Exhaust gas temperature sensor 2 G448
- Oxygen Sensor (O2S) 2 Behind Three Way Catalytic Converter (TWC) G131
- Heated Oxygen Sensor (HO2S) 2 G108
- Ignition coil 10 with power output stage -N328-
- Ignition Coil 9 with Power Output Stage -N327-
- Ignition Coil 8 with Power Output Stage -N326-
- Ignition Coil 7 with Power Output Stage -N325-
 Courtesy of AUDI
|
