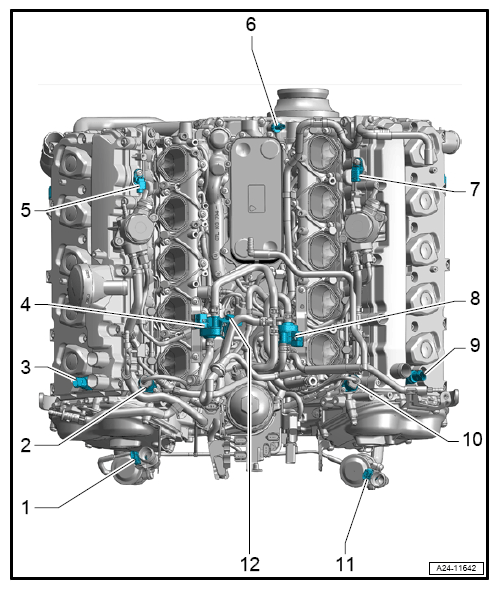

Top View Part I
- Secondary air injection sensor 2 -G610-
- Camshaft Adjustment Valve 2 -N208-
- Camshaft Adjustment Valve 2 (exhaust) -N319-
- EVAP canister purge regulator valve 2 -N115-
- Camshaft Position (CMP) Sensor 2 -G163-
- Engine Coolant Temperature (ECT) Sensor -G62-
- Camshaft Position (CMP) Sensor -G40-
- Evaporative Emission (EVAP) Canister Purge Regulator Valve 1 -N80-
- Camshaft Adjustment Valve 1 (exhaust) -N318-
- Camshaft Adjustment Valve 1 -N205-
- Secondary Air Injection Sensor 1 -G609-
- Secondary Air Injection (AIR) Solenoid Valve -N112-
 Courtesy of AUDI
|
