Top View Part II

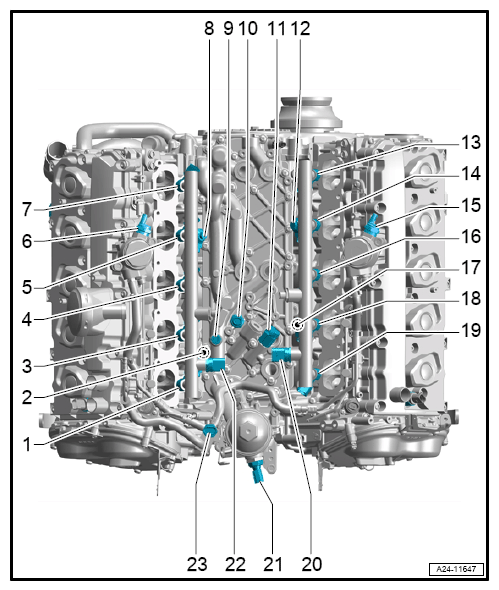

  1. Cylinder 10 Fuel Injector -N300-
  2. Knock Sensor 4 -G199-
  3. Cylinder 9 Fuel Injector -N299-
  4. Cylinder 8 Fuel Injector -N86-
  5. Cylinder 7 Fuel Injector -N85-
  6. Fuel metering valve 2 -N402-
  7. Cylinder 6 Fuel Injector -N84-
  8. Knock Sensor 3 -G198-
  9. Oil Temperature Sensor 2 -G664-
  10. Reduced oil pressure switch -F378-
  11. Piston cooling nozzle control valve -N522-
  12. Knock Sensor 1 -G61-
  13. Cylinder 1 Fuel Injector -N30-
  14. Cylinder 2 Fuel Injector -N31-
  15. Fuel metering valve -N290-
  16. Cylinder 3 Fuel Injector -N32-
  17. Cylinder 4 Fuel Injector -N33-
  18. Knock Sensor 2 -G66-
  19. Cylinder 5 Fuel Injector -N83-
  20. Fuel Pressure Sensor -G247-
  21. Oil pressure switch -F1-
  22. Fuel Pressure Sensor 2 -G624-
  23. Low Fuel Pressure Sensor -G410-
G12778209Courtesy of AUDI
