Vehicle Cabin Modules Overview

NOTE:
  • The component locations of the control modules are shown on a Coupe.
  • Unless otherwise specified, the component locations of the various control Modules for the Coupe and Spyder are identical.

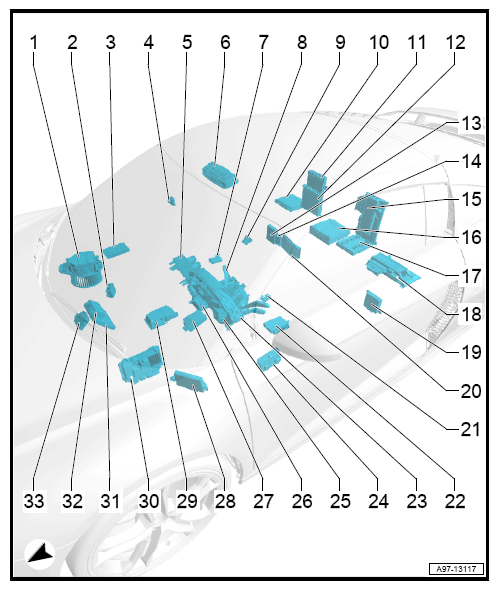

G12778083Courtesy of AUDI
  1. 1  - → "FRESH AIR BLOWER CONTROL MODULE J126 "
  2. 2  - → "HEADLAMP RANGE CONTROL MODULE J431 "
  3. 3  - → "CHIP CARD READER CONTROL MODULE J676 "
  4. 4  - → "AUTOMATIC HIGH BEAM ASSIST CONTROL MODULE J844 "
  5. 5  - → "A/C CONTROL HEAD (A/C, CLIMATRONIC) E87 "
  6. 6  - → "ROOF ELECTRONICS CONTROL MODULE J528 "
  7. 7  - → "PASSENGER OCCUPANT DETECTION SYSTEM CONTROL MODULE J706 "
  8. 8  - → "SELECTOR LEVER SENSOR CONTROL MODULE J587 "
  9. 9  - → "REAR SPOILER CONTROL MODULE J223 "
  10. 10  - → "TV TUNER R78 " Coupe
  11. 11  - → " CONVERTIBLE TOP CONTROL MODULE J256 "
  12. 12  - → "TV TUNER R78 " Spyder
  13. 13  - → "REAR VIEW CAMERA SYSTEM CONTROL MODULE J772 "
  14. 13  - → "ENGINE SOUND GENERATOR CONTROL MODULE J943 "
  15. 14  - → "AMPLIFIER FOR TELEPHONE R86 "
  16. 15  - → "DIGITAL SOUND SYSTEM CONTROL MODULE J525 " Spyder
  17. 16  - → "CONTROL MODULE FOR INFORMATION ELECTRONICS 1 J794 "
  18. 17  - → "COMFORT SYSTEM CENTRAL CONTROL MODULE J393 "
  19. 18  - → "DIGITAL SOUND SYSTEM CONTROL MODULE J525 " Coupe
  20. 19  - → "SEAT BELT MICROPHONE CONTROL MODULE J886 "
  21. 20  - → "ELECTRONIC DAMPING CONTROL MODULE J250 "
  22. 21  - → "MULTI-FUNCTION STEERING WHEEL CONTROL MODULE J453 "
  23. 22  - → "MEMORY SEAT/STEERING COLUMN ADJUSTMENT CONTROL MODULE J136/PASSENGER MEMORY SEAT CONTROL MODULE J521 "
  24. 23  - → "STEERING COLUMN ELECTRONIC SYSTEMS CONTROL MODULE J527 "
  25. 24  - → "DRIVER'S DOOR CONTROL MODULE J386/FRONT PASSENGER'S DOOR CONTROL MODULE J387 "
  26. 25  - → "INSTRUMENT CLUSTER CONTROL MODULE J285 "
  27. 26  - → "SENSOR ELECTRONICS CONTROL MODULE J849 "
  28. 27  - → "ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE J764 "
  29. 28  - → "DATA BUS ON BOARD DIAGNOSTIC INTERFACE J533 "
  30. 29  - → "AIRBAG CONTROL MODULE J234 "
  31. 30  - → "ACTIVE STEERING CONTROL MODULE J792 "
  32. 31  - → "VEHICLE ELECTRICAL SYSTEM CONTROL MODULE J519 "
  33. 32  - Not Installed
  34. 33  - → "VEHICLE POSITIONING SYSTEM INTERFACE CONTROL MODULE J843 "
