Ignition Coils, Removing And Installing: Installing
Install in reverse order of removal while noting the following:
-- Apply a thin bead of silicone paste around the sealing hose for the ignition -arrow-.
NOTE:
Only the silicone paste may be used which is specified for this use in the Parts Information.
By not following this there is a risk of destroying the ignition coil.

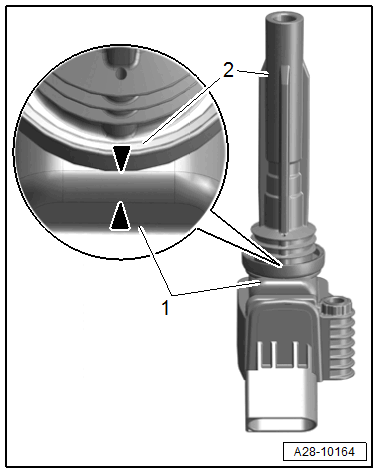

-- Insert the spark plug connector -2- by hand onto the ignition coil -1- all the way.
- The arrow markings on the spark plug connectors and on the ignition coil must point to each other as shown.
-- Push the ignition coils evenly onto the spark plugs using by hand (do not use any impact tools).
-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
