Overview - Front Backrest, Spring Mat

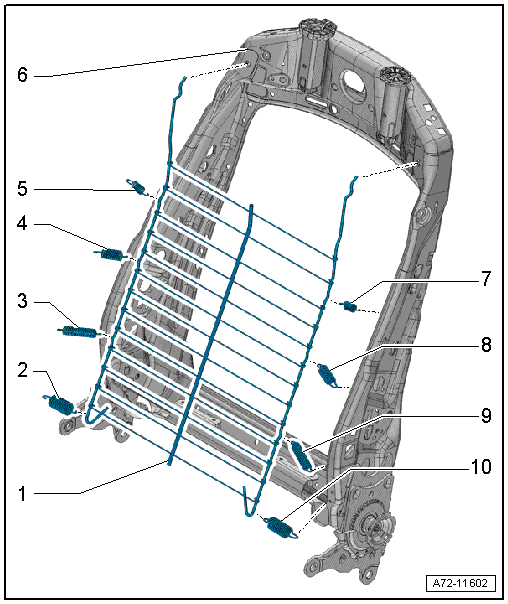

Fig 1: Front Backrest, Spring Mat Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Spring Mat
   • Removing and installing. Refer to SPRING MAT, REMOVING AND INSTALLING .
   • can be removed and installed with and without the pull-springs
2. Bottom Spring
   • Not available individually
3. Center Spring
   • Not available individually
4. Center Spring
   • Not available individually
5. Top Spring
   • Not available individually
6. Backrest Frame
7. Top Spring
   • Not available individually
8. Center Spring
   • Not available individually
9. Center Spring
   • Not available individually
10. Bottom Spring
    • Not available individually
