Component Location Overview - Navigation System

WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

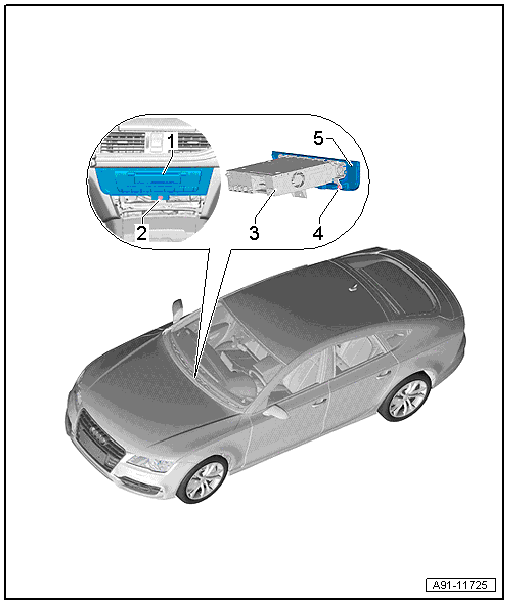

Fig 1: Component Location Overview Of Navigation System

Courtesy of AUDI OF AMERICA, LLC

Information Electronics Control Module 1 -J794-
- Navigation connector assignment, 7T2. Refer to NAVIGATION CONNECTOR ASSIGNMENT, 7T2 .
- Navigation plus connector assignment, 7T6. Refer to NAVIGATION PLUS CONNECTOR ASSIGNMENT, 7T6 .
- Navigation plus connector assignment, 7UG. Refer to NAVIGATION PLUS CONNECTOR ASSIGNMENT, 7UG, FROM MY 2015 .
- Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
Screw
- 3 Nm
Information Electronics Control Module 1 -J794-
Screw
- 1 Nm
- Quantity: 4
Trim
