Overview - Airbag Control Module

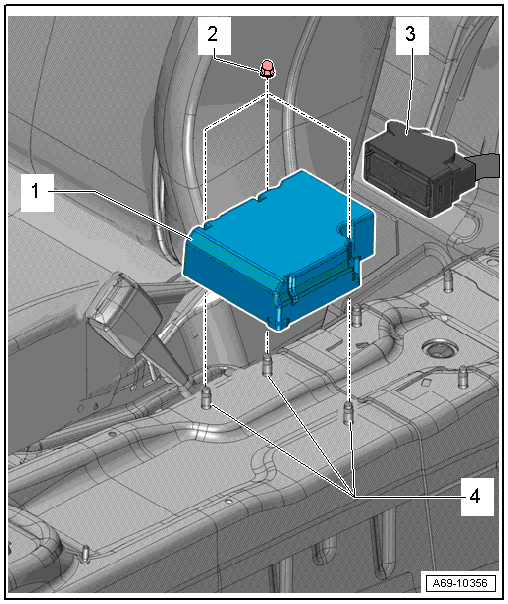

Fig 1: Exploded View Of Airbag Control Module

Courtesy of AUDI OF AMERICA, LLC

1. Airbag Control Module -J234-
   • Removing and installing. Refer to Airbag Control Module -J234-, REMOVING AND INSTALLING .
   • Control module is grounded via the housing with the body.
2. Nut
   • 9 Nm
   • Quantity: 3
   • The thread must be paint and contaminant free, nut and ground bolts serve as ground connection for the control module
3. Connector
4. Threaded Pins
   • The thread must be paint and contaminant free, nut and ground bolts serve as ground connection for the control module
