Access/Start Control Module Connector End View (J518, T32A)

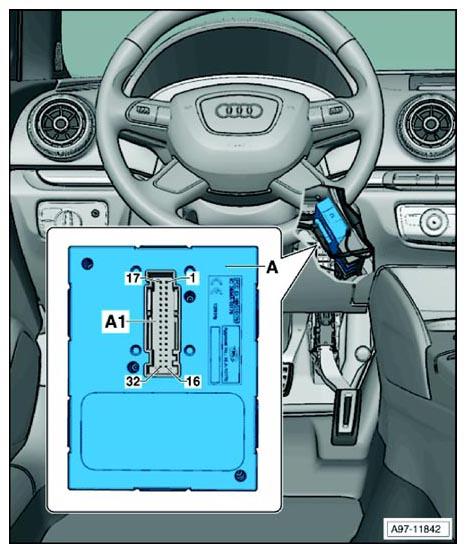

Fig 1: Access/Start Control Module Connector End View (J518, T32a)

Courtesy of AUDI OF AMERICA, LLC

A	Access/Start Control Module -J518-
A1	32-Pin Connector -T32a-, blue

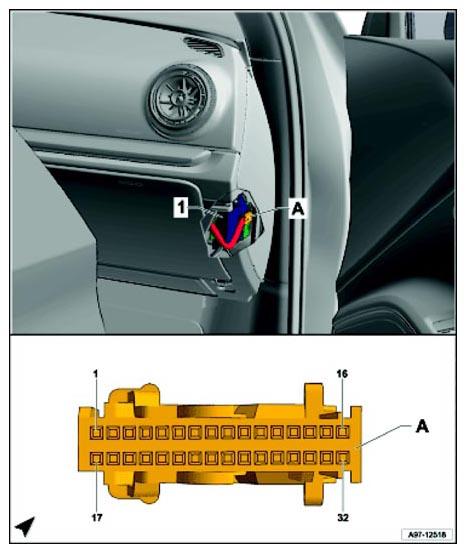

Fig 1: Access/Start Control Module Connector End View (J518, T32a)

Courtesy of AUDI OF AMERICA, LLC

1	Access/Start Control Module -J518-
A	32-Pin Connector -T32a-, blue
