Control Module For Emergency Call Module And Communication Unit Connector End View (J949, T4BN, T26E)
Control Module For Emergency Call Module And Communication Unit Connector End View (J949, T4BN, T26E)

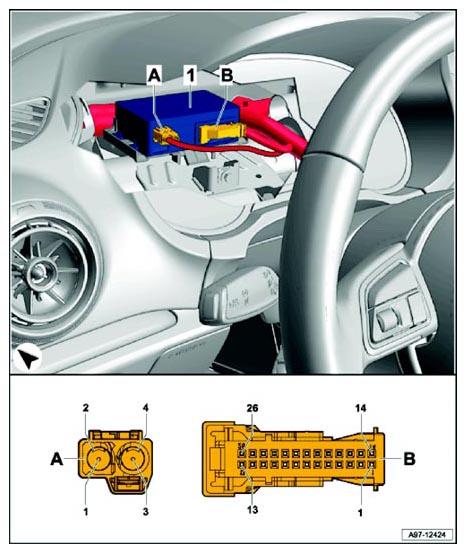

Fig 1: Control Module for Emergency Call Module And Communication Unit Connector End View (J949, T4bn, T26e)
Courtesy of AUDI OF AMERICA, LLC
1
Control module for emergency call module and communication unit -J949-
A
4-Pin Connector -T4bn-, purple
B
26-Pin Connector -T26e-, black
