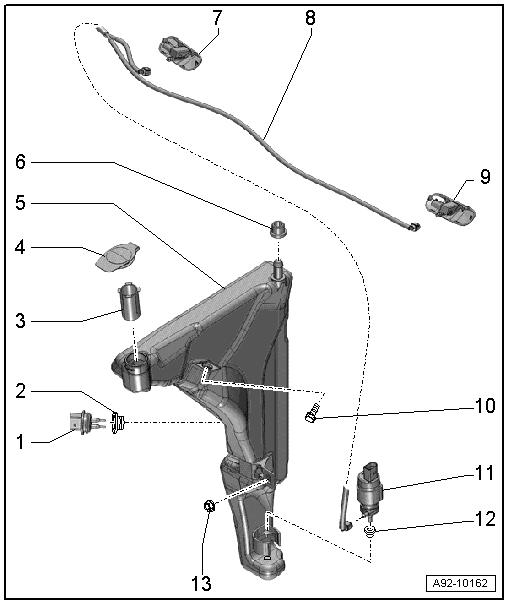

Overview - Windshield Washer System
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
- Windshield Washer Fluid Level Sensor -G33-
- Removing and installing, refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
- Grommet
- Screen
- Cap
- For the filler neck
- Windshield Washer Fluid Reservoir
- Removing and installing, refer to WINDSHIELD WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Grommet
- Right Spray Nozzle
- Depending on vehicle equipment with Right Washer Nozzle Heater -Z21-
- Removing and installing, refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
- Adjusting, refer to SPRAY NOZZLES, ADJUSTING .
- Water Hose
- For the windshield washer system
- Left Spray Nozzle
- Depending on vehicle equipment with Left Washer Nozzle Heater -Z20-
- Removing and installing, refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
- Adjusting, refer to SPRAY NOZZLES, ADJUSTING .
- Bolt
- 7 Nm
- Windshield Washer Pump -V5-
- Removing and installing, refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
- Grommet
- Nut
- 7 Nm
