Blower Motor: Removal

WARNING: This page is about a different car, the 2017 Ford Expedition and 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the passenger side lower instrument panel insulator.
- Disconnect the ambient lighting electrical connector (if equipped).
- Remove the passenger side lower instrument panel insulator pin-type retainers and remove the insulator.

Courtesy of FORD MOTOR COMPANY

2.

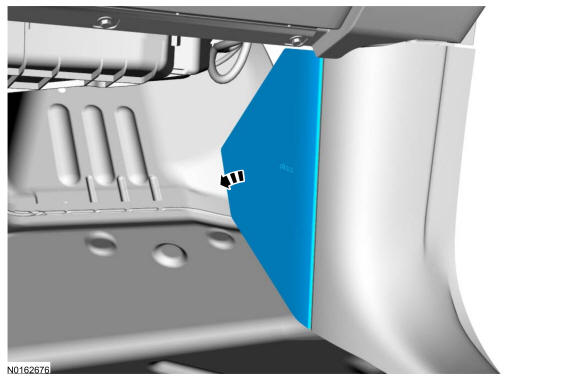

Remove the passenger side lower A-pillar junction box cover.

Courtesy of FORD MOTOR COMPANY

3.

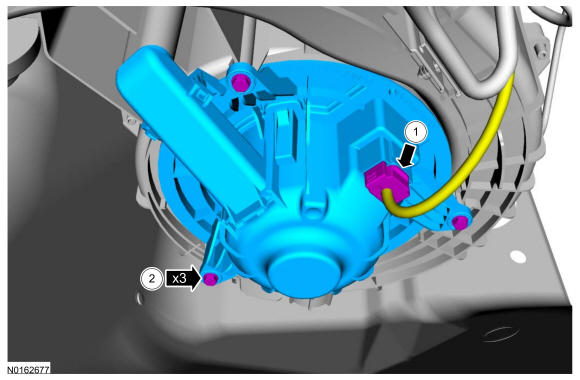

Remove the blower motor.
- 1.

  Disconnect the blower motor electrical connector.
- 2.

  Remove the blower motor screws and remove the blower motor.

Courtesy of FORD MOTOR COMPANY
