Abs Control Module -J104- Connector Views

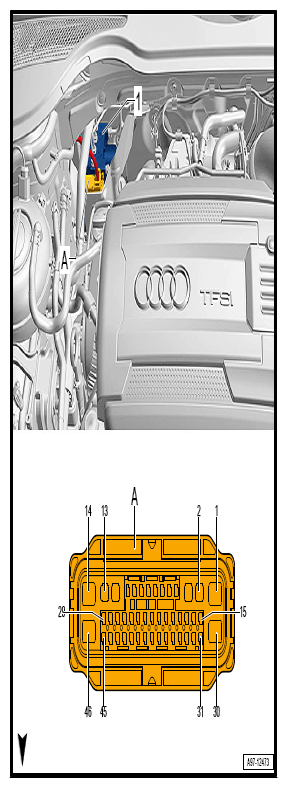

46-PIN CONNECTOR -T46B- (A)
| T46B (A) | Designation |
|---|---|
| 1 | Terminal 30, from Fuse Panel C SC from MY 2016 From Fuse Panel B SB from MY 2017 |
| 2 | Right Parking Brake Motor V283 |
| 3 | Right Parking Brake Motor V283 |
| 4 | Right Front Wheel Speed Sensor G45 |
| 5 | Right Front Wheel Speed Sensor G45 |
| 6 | Left Rear Wheel Speed Sensor G46 |
| 7 | Left Rear Wheel Speed Sensor G46 |
| 8 | Left Front Wheel Speed Sensor G47 |
| 9 | Left Front Wheel Speed Sensor G47 |
| 10 | Right Rear Wheel Speed Sensor G44 |
| 11 | Right Rear Wheel Speed Sensor G44 |
| 12 | Left Parking Brake Motor V282 |
| 13 | Left Parking Brake Motor V282 |
| 14 | Terminal 31, to 167 Ground connection 4 (in engine compartment wiring harness) 12 Ground Connection (in engine compartment, left) (left-hand drive) 685 Ground Connection 1 (on right front long member) (right hand drive) |
| 15 | |
| 16 | |
| 17 | Electro-Mechanical Parking Brake Button E538 |
| 18 | Electro-Mechanical Parking Brake Button E538 |
| 19 | Electro-Mechanical Parking Brake Button E538 |
| 20 | |
| 21 | |
| 22 | |
| 23 | -AUTO HOLD- Button E540 |
| 24 | Electro-Mechanical Parking Brake Button E538 |
| 25 | |
| 26 | |
| 27 | |
| 28 | |
| 29 | |
| 30 | Terminal 30, from Fuse Panel C SC from MY 2016 From Fuse Panel B SB from MY 2017 |
| 31 | Terminal 30, from D78 - Positive connection 1 (30a) (in engine compartment wiring harness) Fuse Panel C SC |
| 32 | -AUTO HOLD- Indicator Lamp K237 |
| 33 | Clutch Position Sensor G476 |
| 34 | |
| 35 | Terminal 15, from D102 Connection 2 (in engine compartment wiring harness) B277 Positive connection 1 (15a) (in main wiring harness) Vehicle Electrical System Control Module J519 |
| 36 | Electro-mechanical Parking Brake Indicator Lamp K213 |
| 37 | |
| 38 | Vacuum Sensor G608 |
| 39 | ASR/ESP Button E256 |
| 40 | |
| 41 | |
| 42 | CAN-Bus running gear/instrument cluster, High D159 High bus connection (in engine compartment wiring harness) B672 Suspension/instrument cluster CAN bus high connection 1 (in main wiring harness) B673 Suspension/instrument cluster CAN bus high connection 2 (in main wiring harness) Data Bus On Board Diagnostic Interface J533 |
| 43 | CAN-Bus running gear/instrument cluster, Low D160 Low bus connection (in engine compartment wiring harness) B676 Suspension/instrument cluster CAN bus low connection 1 (in main wiring harness) B677 Suspension/instrument cluster CAN bus low connection 2 (in main wiring harness) Data Bus On Board Diagnostic Interface J533 |
