Electrical Components Locations & Connector End Views -- TT QUATTRO
›
Comp. LOC. Vehicle Rear Modules
›
Battery Monitoring Control Module J367
›

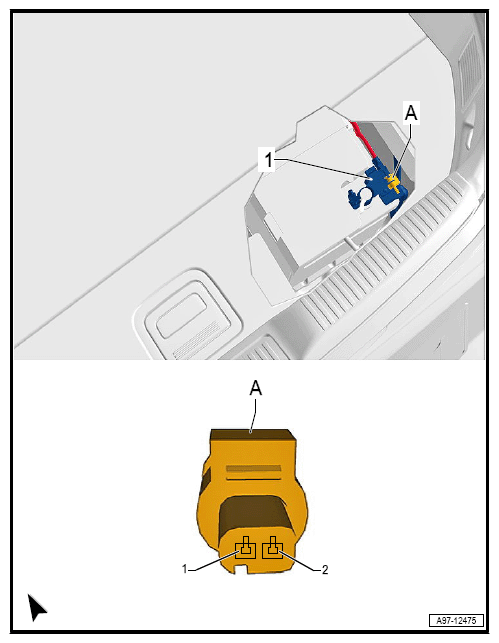

Battery Monitoring Control Module -J367- Location
Battery Monitoring Control Module -J367- Location
1
- Battery Monitoring Control Module -J367-
A
- Double Connector -T2a-, yellow
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
