Rear View Camera System Control Module -J772- Connector Views

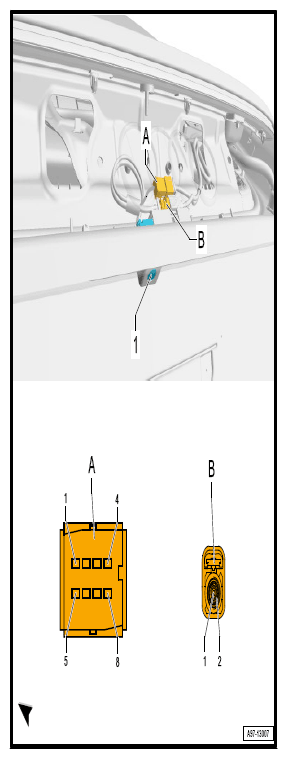

8-PIN CONNECTOR -T8D- (A)
| T8D (A) | Designation | ||||
|---|---|---|---|---|---|
| 1 | Terminal 30, from Fuse panel C SC | ||||
| 2 | |||||
| 3 | |||||
| 4 | Infotainment CAN-Bus High to B415 Infotainment CAN-Bus High Connection 1 (in main wiring harness)(1) B416 Infotainment CAN Bus high connection 2 (in main wiring harness)(2) |
||||
| 5 | Terminal 31, to 729 Ground connection on left rear wheel housing (1) 730 Ground connection 1 on right rear wheel housing(2) |
||||
| 6 | |||||
| 7 | |||||
| 8 | Infotainment CAN-Bus Low to B421 Infotainment CAN-Bus Low Connection 1 (in main wiring harness)(1) B422 Infotainment CAN Bus low connection 2 (in main wiring harness)(2) |
||||
|
|||||
