Electrical Components Locations & Connector End Views -- TT QUATTRO
›
Comp. LOC. Vehicle Rear Modules
›
Vehicle Positioning System Interface Control Module J843
›

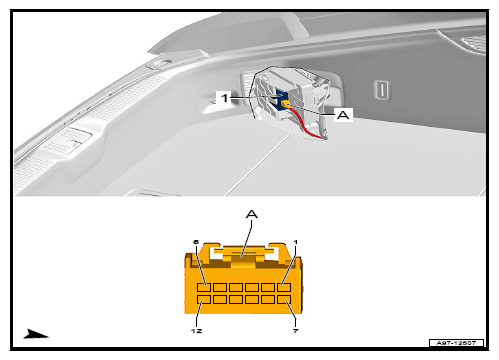

Vehicle Positioning System Interface Control Module -J843- Location
Vehicle Positioning System Interface Control Module -J843- Location
1
- Vehicle positioning system interface control module -J843-
A
- 12-Pin Connector -T12e-, black
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
