CLIMATRONIC Control Module J255
›

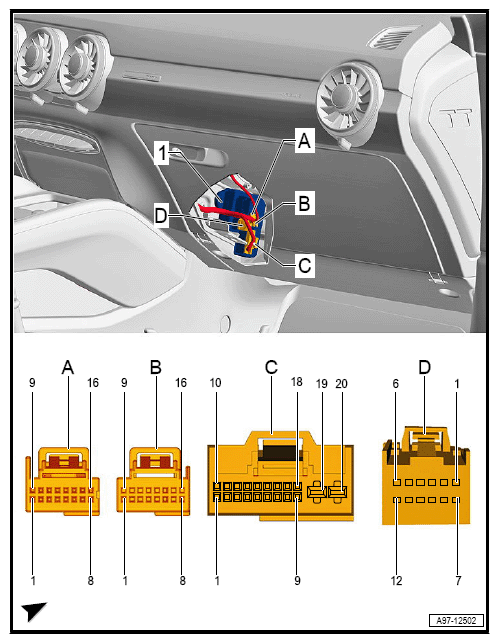

CLIMATRONIC Control Module -J255- Location
CLIMATRONIC Control Module -J255- Location
1
- Climatronic Control Module -J255-
A
- 16-Pin Connector -T16d-, black
B
- 16-Pin Connector -T16e-, brown
C
- 20-Pin Connector -T20c-, black
D
- 12-Pin Connector -T12d-, black
Courtesy of AUDI OF AMERICA, LLC
