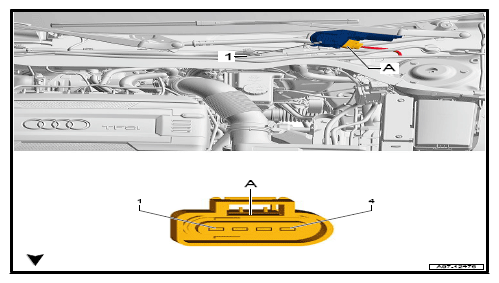

Wiper Motor Control Module -J400- Connector Views
4-PIN CONNECTOR -T4AB- (A)
| (A) | Designation |
|---|---|
| 1 | Terminal 30, from Fuse Panel B SB |
| 2 | |
| 3 | Terminal 31, to 131 Ground connection 2 (in engine compartment wiring harness) 132 Ground Connection 3 (in engine compartment wiring harness) 671 Ground Connection 1 (on left front long member) |
| 4 | LIN-Bus, from Vehicle Electrical System Control Module J519 |
