Electrical Components Locations & Connector End Views -- TT QUATTRO
›
Comp. LOC. Vehicle Front Modules
›
Abs Control Module J104
›

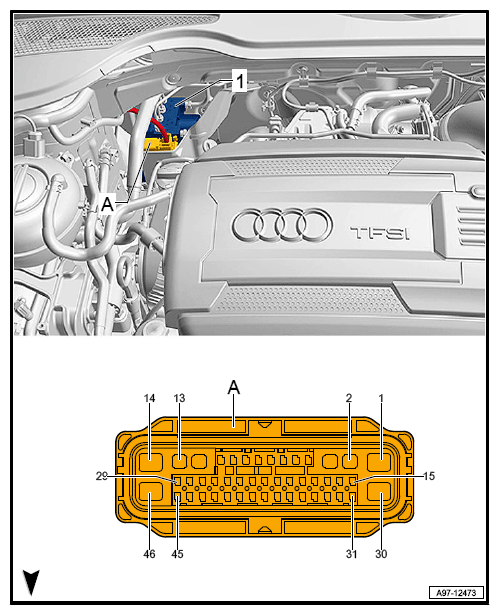

Abs Control Module -J104- Location
Abs Control Module -J104- Location
ABS Control Module -J104-
46-Pin Connector -T46b-, black
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
