Wiring Diagram [CYMC]
›

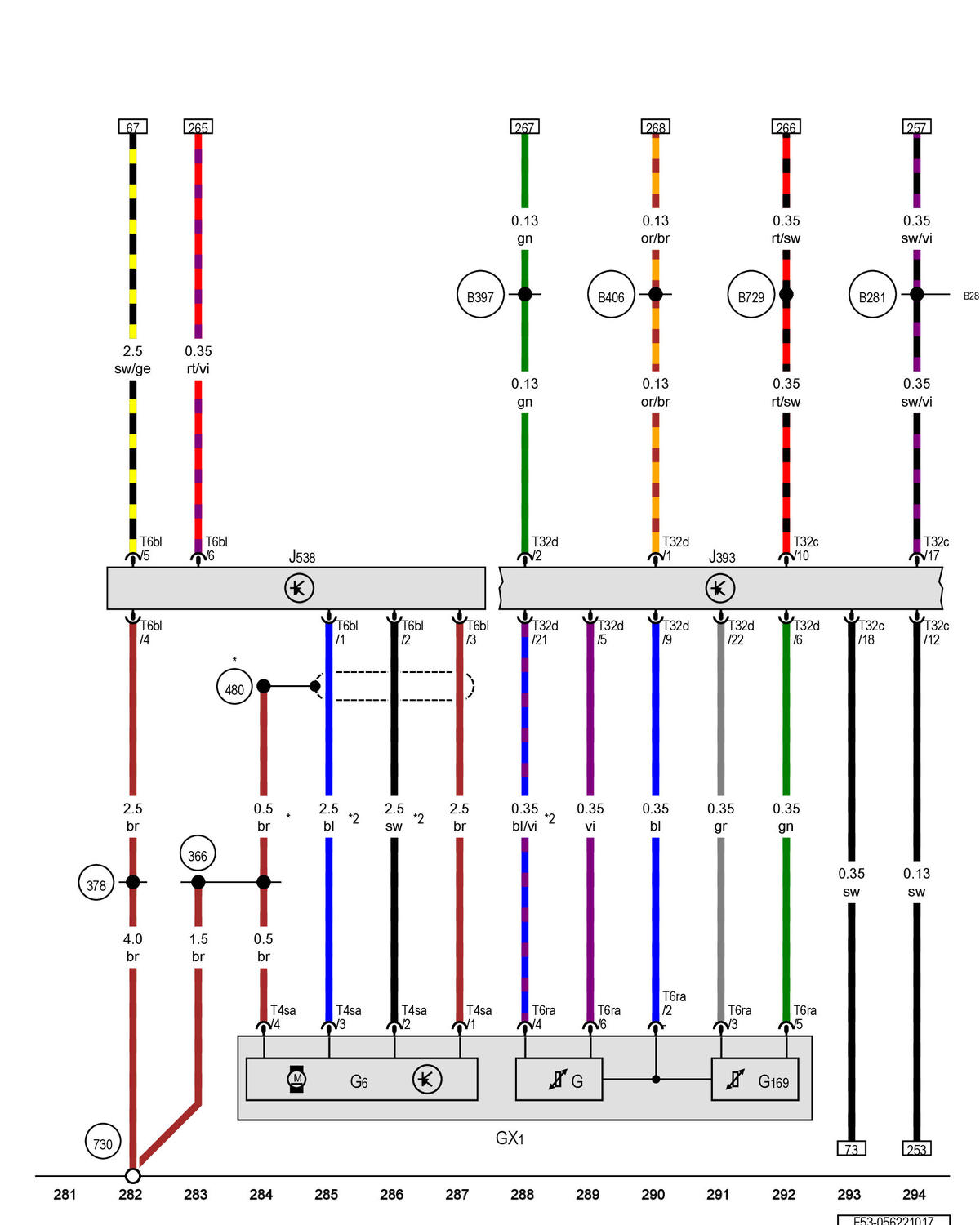

Wiring Diagram
›
Fuel Delivery Unit, Comfort System Central Control Module, Fuel Pump Control Module
›
Notes
Fuel Delivery Unit, Comfort System Central Control Module, Fuel Pump Control Module: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
