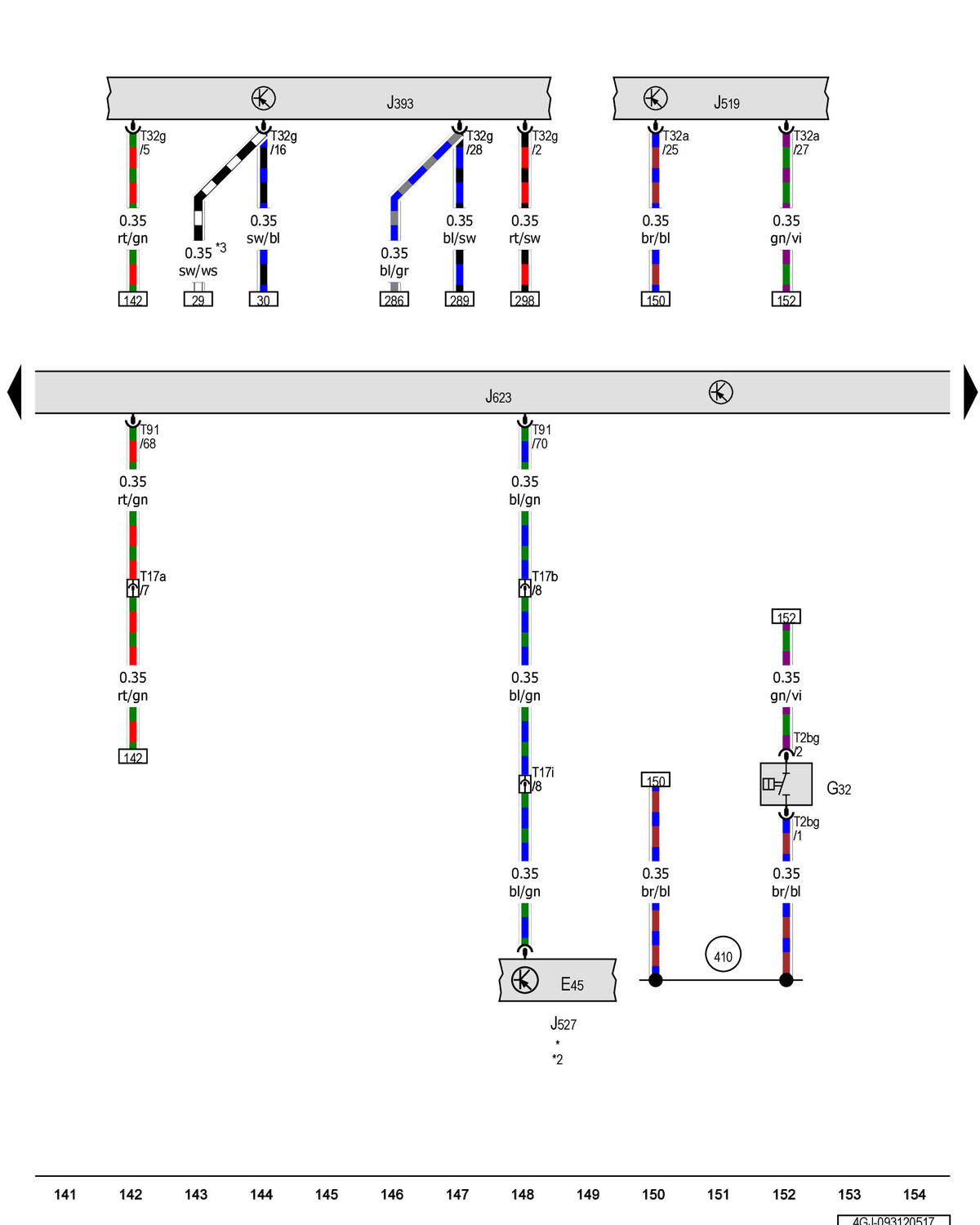

Engine Coolant Level Sensor, Vehicle Electrical System Control Module, Engine Control Module: Notes

GWW4GJ-093120517Courtesy of AUDI OF AMERICA, LLC
