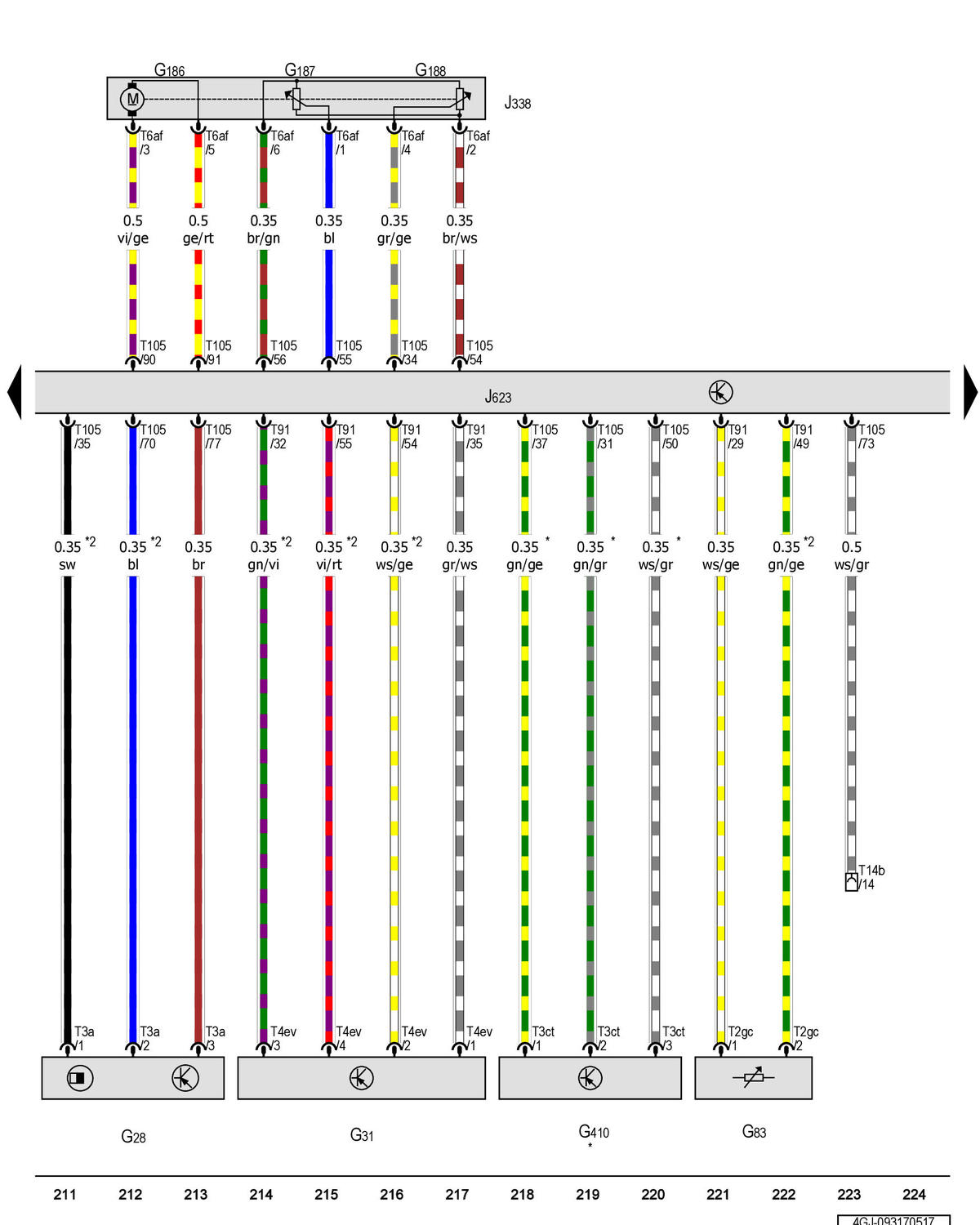

Engine Speed Sensor, Throttle Valve Control Module, Engine Control Module: Notes

GWW4GJ-093170517Courtesy of AUDI OF AMERICA, LLC
